1
Engine displacement
300
2
Model
BEVERLY
3
Year
2015
4
Trim
BEVERLY RST/S 4T 4V IE E3
5
Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Crankcase
by
Front shield
Driven pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
14
16
17
18
19
1
Secondary pulley
CM144134
Not Available
2
Sec. fixed sheave, complete
878647
Not Available
3
Snap ring
483226
$0,72 Unit Price incl. VAT
4
Roller cage 20x29x18
82518R
$12,62 Unit Price incl. VAT
5
Bearing 17x30x7
82753R
$19,17 Unit Price incl. VAT
6
Guide pin L=12,5
828717
$0,34 Unit Price incl. VAT
7
Sec. sliding sheave, complete
878651
Not Available
8
Gasket ring
431089
$2,55 Unit Price incl. VAT
9
Gasket
430585
$4,89 Unit Price incl. VAT
10
O-ring
834044
$3,65 Unit Price incl. VAT
11
Cup
833674
$9,70 Unit Price incl. VAT
12
Variator spring
833673
$8,77 Unit Price incl. VAT
13
Clutch side cap
487936
$5,73 Unit Price incl. VAT
14
Centrifugal clutch assy
8722515
Not Available
16
Ring nut
433232
$2,31 Unit Price incl. VAT
17
Clutch drum
8440494
$26,86 Unit Price incl. VAT
18
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
19
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT

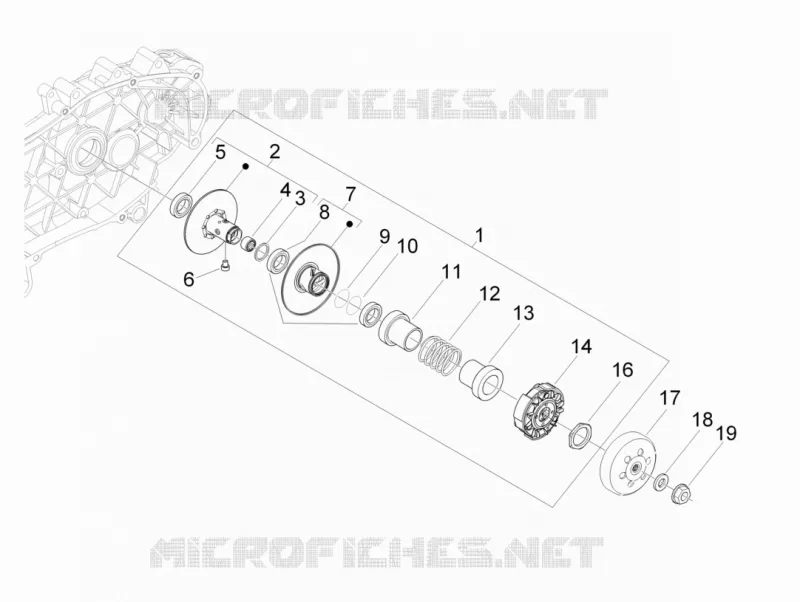

Find the detailed Driven pulley GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
