Wheel huosing - Mudguard for BEVERLY RST/S 4T 4V IE E3 from 2015

Wheel huosing - Mudguard

1

Front mudguard

66719700RR

$418,21 Unit Price incl. VAT

1

Front mudguard

66719700NO

Not Available

1

Front splash guard

66719700HC

$95,59 Unit Price incl. VAT

1

Front mudguard

66719700BU

Not Available

1

Front mudguard

66719700EV

Not Available

1

Front mudguard

66719700M8

Not Available

1

Front mudguard

667197

$300,02 Unit Price incl. VAT

1

Front mudguard

66719700XN2

Not Available

1

Front mudguard

66719700MC

Not Available

1

Front mudguard

66719700NN

Not Available

1

Front mudguard

66719700GV

Not Available

1

Front mudguard

66719700DO

Not Available

1

Front mudguard

66719700BT

Not Available

1

Front mudguard

66719700DE

$418,21 Unit Price incl. VAT

2

Rear mudguard

656830

Not Available

3

Wheel compartment

656340000C

$55,40 Unit Price incl. VAT

4

LH sleeve

66550400EU

Not Available

4

LH sleeve

66550400NM

Not Available

5

RH sleeve

66550500NM

Not Available

5

RH sleeve

66550500EU

Not Available

6

Sliders support bracket

598642

$6,30 Unit Price incl. VAT

7

Self locking nut M6

195482

$0,19 Unit Price incl. VAT

8

Metric screw TBC

575249

$0,66 Unit Price incl. VAT

9

Support clamp

665995

$18,07 Unit Price incl. VAT

10

Spring plate M6

254485

$0,34 Unit Price incl. VAT

11

Screw m6x12

031086

$0,08 Unit Price incl. VAT

12

Spring washer 6,4x11x0,5

006966

$0,08 Unit Price incl. VAT

13

Self tapping screw

297498

$0,08 Unit Price incl. VAT

14

Self-tapping screw M5x12

015585

$0,08 Unit Price incl. VAT

15

Self-tap screw

CM178604

$0,08 Unit Price incl. VAT

16

Spring plate

CM017410

$0,34 Unit Price incl. VAT

17

Plug

657286

$4,98 Unit Price incl. VAT

18

Screw M6x16

CM179301

$0,25 Unit Price incl. VAT

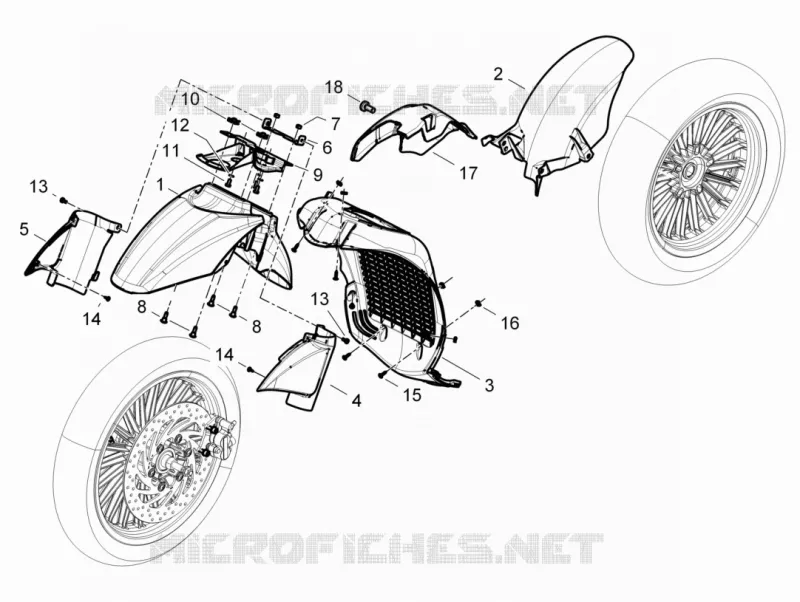

Find the detailed Wheel huosing - Mudguard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
