1
Engine displacement
300
2
Model
BEVERLY
3
Year
2015
4
Trim
BEVERLY RST/S 4T 4V IE E3
5
Parts Catalog
Handlebars - Master cil.
6
Parts Diagram
Parts Catalog
by
Crankshaft
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
10
11
11
12
12
13
14
15
16
17
18
1
Handlebar with U.P.
6737075
Not Available
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat washer
178790
$0,51 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Throttle control sleeve assembly
58608R
$54,12 Unit Price incl. VAT
6
Throttle control sleeve assembly
CM079733
Not Available
7
Grip, r.h.
CM084202
$7,02 Unit Price incl. VAT
8
Throttle opening transmission
665974
Not Available
9
Throttle closing transmission
665975
Not Available
10
Grip, l.h.
CM084201
$7,02 Unit Price incl. VAT
11
Handlebar terminal
675829
$13,26 Unit Price incl. VAT
11
Anti vib.weight trailing
673243
$24,38 Unit Price incl. VAT
12
screw M6x55
271434
Not Available
13
Left hydraulic pump (Heng Tong)
CM081204
$49,73 Unit Price incl. VAT
14
Brake lever Heng Tong
600475
$11,82 Unit Price incl. VAT
15
U-bolt Heng Tong
600478
$11,06 Unit Price incl. VAT
16
Right hydraulic pump (Brembo)
CM086003
Not Available
17
Brake lever (Brembo)
646829
$27,00 Unit Price incl. VAT
18
Handlebar washer
601170
$6,60 Unit Price incl. VAT

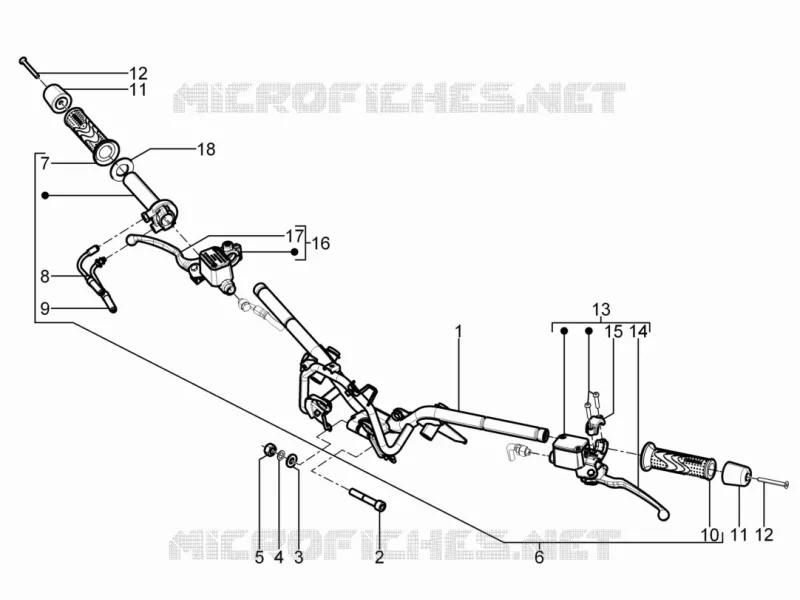

Find the detailed Handlebars - Master cil. GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
