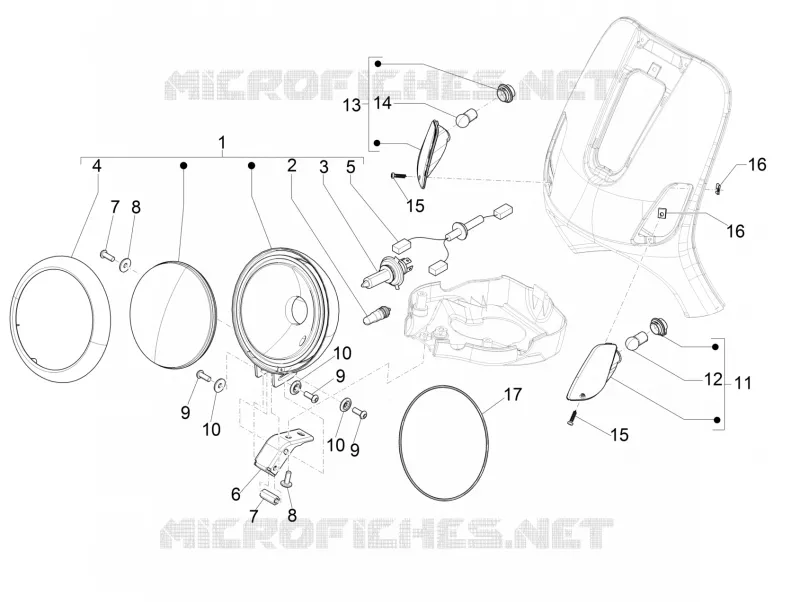

Front headlamps - Turn signal lamps
17
16
16
15
15
15
14
13
12
12
11
10
10
10
10
9
9
9
8
8
7
7
6
5
4
3
2
2
1
1
1
Headlamp, assy
1D000175000BR
Not Available
1
Headlamp, assy
1D000175000MG
Not Available
1
Headlamp, assy
1D000175000DE5
Not Available
1
Headlamp, assy
1D000175500Q3
Not Available
1
Headlamp, assy
1D000175000S15
Not Available
1
Headlamp, assy
1D000175000HM
Not Available
2
Lamp 12V-5W
292022
Not Available
3
Lamp H4 12V-60/55W
292723
$10,39 Unit Price incl. VAT
4
Frame
1D000200
Not Available
5
Headlight cable assembly
1D000247
Not Available
6
Light bracket with i.p.
653051
$40,12 Unit Price incl. VAT
7
Spacer
653054
$5,20 Unit Price incl. VAT
8
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
9
screw M6x16
624995
$3,70 Unit Price incl. VAT
10
Washer
624985
$5,20 Unit Price incl. VAT
11
Front left turn indicator
641912
$20,34 Unit Price incl. VAT
11
Front left turn indicator
58174R
$16,34 Unit Price incl. VAT
12
Bulb 12v 10w
680234
Not Available
13
Front right turn indicator
58175R
$14,50 Unit Price incl. VAT
13
Front right turn indicator
641911
$20,34 Unit Price incl. VAT
14
Bulb 12v 10w
680234
Not Available
15
Self-tap screw M4,2x19
008457
$2,99 Unit Price incl. VAT
16
Plate
CM017406
$3,65 Unit Price incl. VAT
17
Oring
5A000146
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
