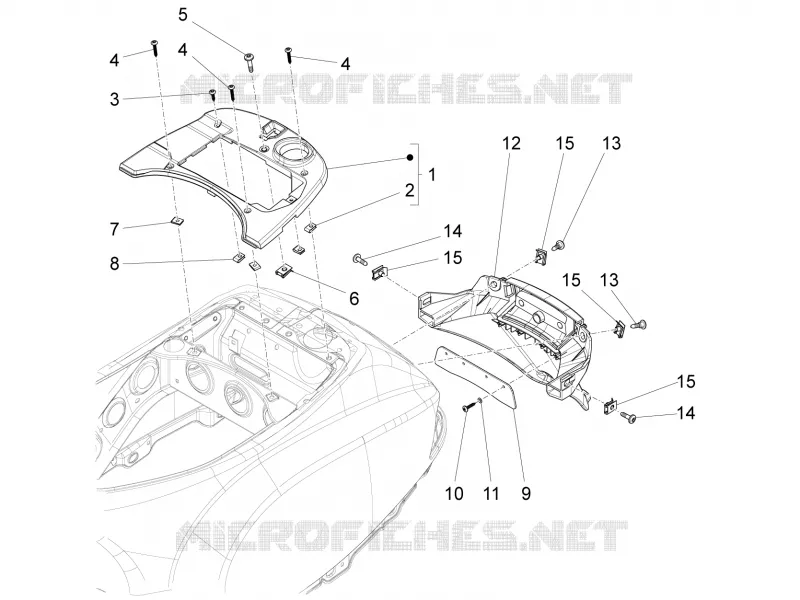

Rear cover - Splash guard
13
15
15
15
15
14
14
13
12
11
10
9
8
7
6
5
4
4
4
3
2
1
1
Complete battery tank cover
656303
$19,71 Unit Price incl. VAT
2
Spring plate
CM017410
$0,34 Unit Price incl. VAT
3
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
4
Self tapping screw 4,2x29
623568
Not Available
5
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
6
Spring plate M6
254485
$0,34 Unit Price incl. VAT
7
Plate
CM017408
$0,25 Unit Price incl. VAT
8
Spring plate
CM017410
$0,34 Unit Price incl. VAT
9
Splash guard
623420
$5,38 Unit Price incl. VAT
10
Self tapping screw
297498
$0,08 Unit Price incl. VAT
11
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
12
Rear protection
67227700MG
Not Available
12
Rear protection
67227700Q3
Not Available
12
Rear protection
67227700BR
Not Available
12
Rear protection
67227700HM
Not Available
12
Rear protection
672277
$16,97 Unit Price incl. VAT
12
Rear protection
67227700DE
Not Available
12
Rear protection
67227700S1
Not Available
13
Metric screw M6x20
259830
$0,09 Unit Price incl. VAT
14
Metric screw TBC
575249
$0,66 Unit Price incl. VAT
15
Spring plate M6
254485
$0,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
