by

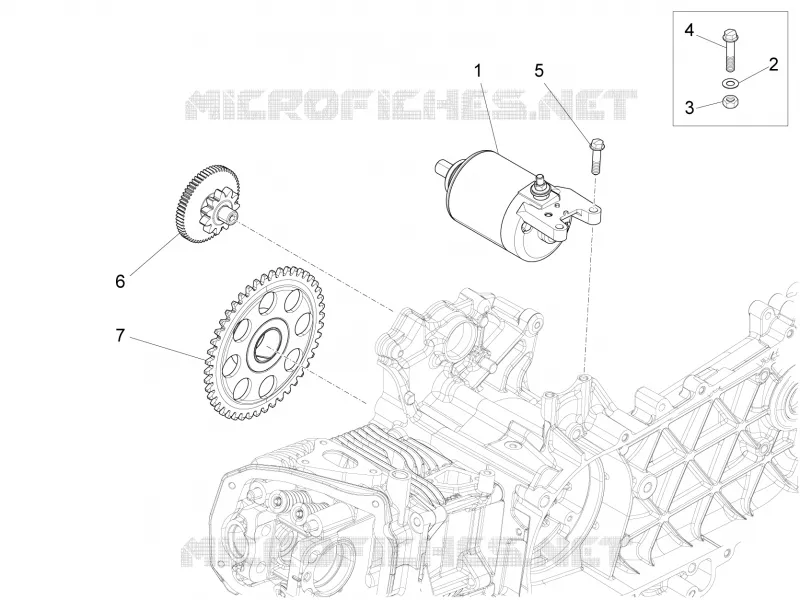

Stater - Electric starter
7
6
5
4
3
2
1
1
Starter motor
1D001647
$109,08 Unit Price incl. VAT
2
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
3
Nut M6
020106
$0,08 Unit Price incl. VAT
4
Screw w/ flange M6x10
969296
$0,16 Unit Price incl. VAT
5
Screw w/ flange M6x25
1A000350
$2,25 Unit Price incl. VAT
5
Screw w/ flange M6x25
B016774
$0,34 Unit Price incl. VAT
6
Electric starter gear
880317
$27,49 Unit Price incl. VAT
7
Starter motor gear
B014165
$51,39 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
