by

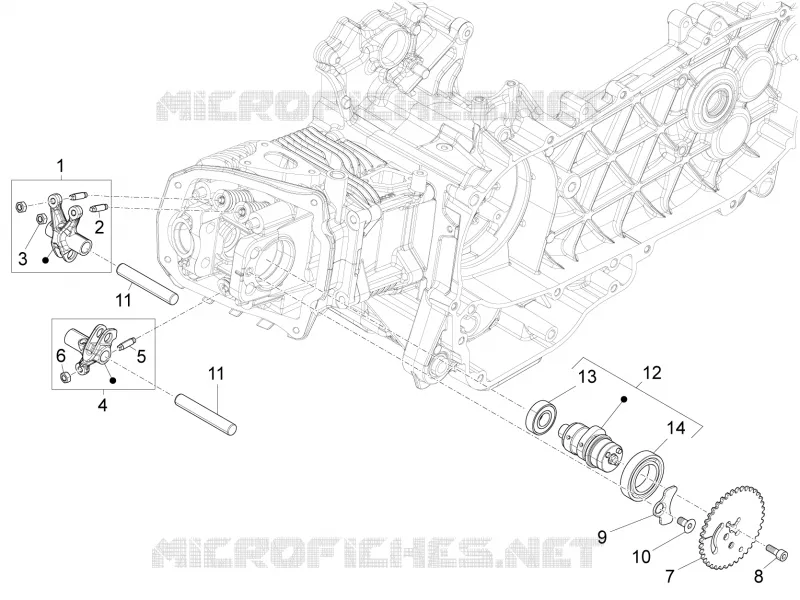

Rocking levers support unit
14
13
12
11
11
10
9
8
7
6
5
4
3
2
1
1
Rocker arm inlet
B013721
$40,88 Unit Price incl. VAT
1
Rocker arm inlet
1A003237R
Not Available
2
Valve adjuster screw
880518
$3,65 Unit Price incl. VAT
3
Rocker arm adjuster nut
880519
$2,95 Unit Price incl. VAT
4
Rocker arm exhaust
B015554
$96,83 Unit Price incl. VAT
4
Rocker arm exhaust
1A003238R
Not Available
5
Valve adjuster screw
880518
$3,65 Unit Price incl. VAT
6
Rocker arm adjuster nut
880519
$2,95 Unit Price incl. VAT
7
Timing system gear
B018675
$5,80 Unit Price incl. VAT
8
Screw
B016474
$36,93 Unit Price incl. VAT
9
Camshaft plate
B013836
$1,26 Unit Price incl. VAT
10
Screw M6x12
1A000325
Not Available
11
Rocker arms axis
B014047
$2,35 Unit Price incl. VAT
12
Camshaft cpl.
1A0035075
$149,09 Unit Price incl. VAT
13
Radial bearing 12X28X8
83029R
$2,77 Unit Price incl. VAT
14
Radial bearing 25x42x9
83030R
$6,56 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
