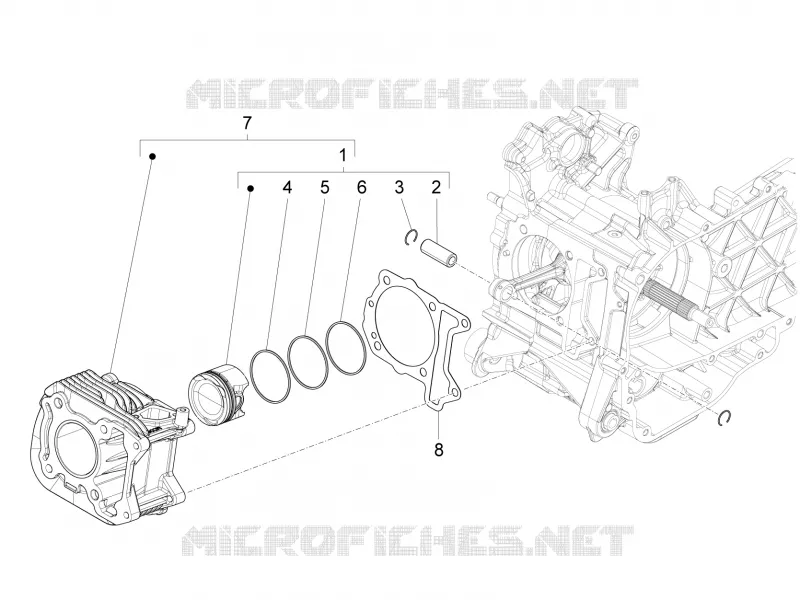

Cylinder-piston-wrist pin unit
8
7
6
5
4
3
2
1
1
Complete piston assembly
B0189540003
$36,34 Unit Price incl. VAT
1
C cat. complete piston
B0180110003
$66,39 Unit Price incl. VAT
1
Complete piston assembly
B0189540002
$35,28 Unit Price incl. VAT
1
D cat. complete piston
B0180110004
$76,49 Unit Price incl. VAT
1
Complete piston assembly
B0189540004
$36,34 Unit Price incl. VAT
1
Complete piston assembly
B0189540001
$35,13 Unit Price incl. VAT
1
A cat. complete piston
B0180110001
$102,02 Unit Price incl. VAT
1
B cat. complete piston
B0180110002
$68,61 Unit Price incl. VAT
2
Piston pin
B017148
$6,38 Unit Price incl. VAT
3
Circlip
B015602
$0,25 Unit Price incl. VAT
4
Compression ring 1° cava
B017544
$16,59 Unit Price incl. VAT
5
Compression ring 2° cava
B017545
$16,59 Unit Price incl. VAT
6
Oil scraper ring 3° cava
B017546
$25,10 Unit Price incl. VAT
7
Cyl.pist.-wrist pin assy unit
1A000771
$215,33 Unit Price incl. VAT
7
Cylinder - piston - pin - parts- rings assembly
1A0009035
$95,93 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,8 mm
B015443
Not Available
8
Crankcase/cylinder gasket 0,6 mm
B015442
$8,65 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,4 mm
B015441
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
