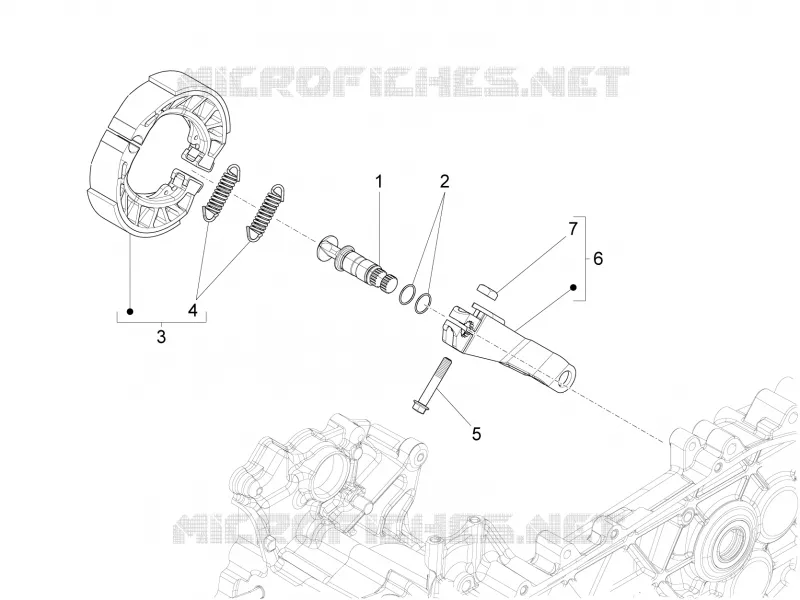

Rear brake - Brake jaw
7
6
5
4
3
2
1
1
Brake lever shaft
B016476
$26,13 Unit Price incl. VAT
2
O-Ring seal ring
B016477
$0,17 Unit Price incl. VAT
3
Pair of brake shoes
82907R
$28,35 Unit Price incl. VAT
4
Brake shoes return spring
266725
Not Available
5
screw M6x35
1A000348
$2,25 Unit Price incl. VAT
5
Hex screw M6x35
B015965
Not Available
6
Rear brake lever
B016731
$13,53 Unit Price incl. VAT
7
Square nut
828862
$2,99 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
