1
Engine displacement
250
2
Model
X-EVO
3
Year
2008
4
Trim
X Evo Euro 3
5
Parts Catalog

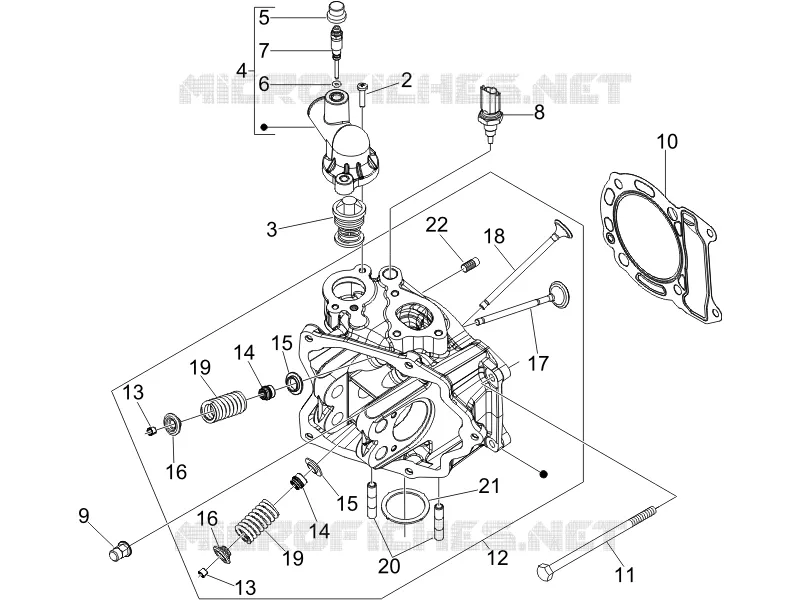

Head unit - Valve
6
Parts Diagram
Parts Catalog
Supply system
by
Handlebars coverages
Head unit - Valve
2
3
3
4
5
6
7
8
9
10
11
12
13
14
14
15
15
16
16
17
18
19
19
20
21
22
2
Torx Screw M5x20
B016808
$0,20 Unit Price incl. VAT
2
Hex socket screw M5x20
845753
Not Available
3
Thermostat
82831R
Not Available
4
Thermostat cover
B018147
$38,43 Unit Price incl. VAT
5
Bleed valve cap
063435
$0,34 Unit Price incl. VAT
6
Gasket
297027
$1,10 Unit Price incl. VAT
7
Bleed screw
845605
$3,21 Unit Price incl. VAT
8
Temp. Sensor
58299R
$76,85 Unit Price incl. VAT
9
Nut M8x1,25
411296
$0,50 Unit Price incl. VAT
10
Cylinder head gasket 0,3 mm
831174
$5,82 Unit Price incl. VAT
11
screw M6x112,5
B016807
$1,26 Unit Price incl. VAT
12
Cylinder head assembly
8800506
$942,78 Unit Price incl. VAT
12
Cylinder head assembly
B019389
$310,05 Unit Price incl. VAT
13
Valve half-cone
285846
$2,94 Unit Price incl. VAT
14
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
15
Lower cap
483711
$1,35 Unit Price incl. VAT
16
Upper cap
483914
$0,91 Unit Price incl. VAT
17
Intake valve
872999
Not Available
18
Exhaust valve
873009
Not Available
19
Spring
828480
$2,25 Unit Price incl. VAT
20
Stud bolt M7
435629
$0,67 Unit Price incl. VAT
21
Exhaust pipe gasket
480853
$4,89 Unit Price incl. VAT
22
Plug
877432
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
