by

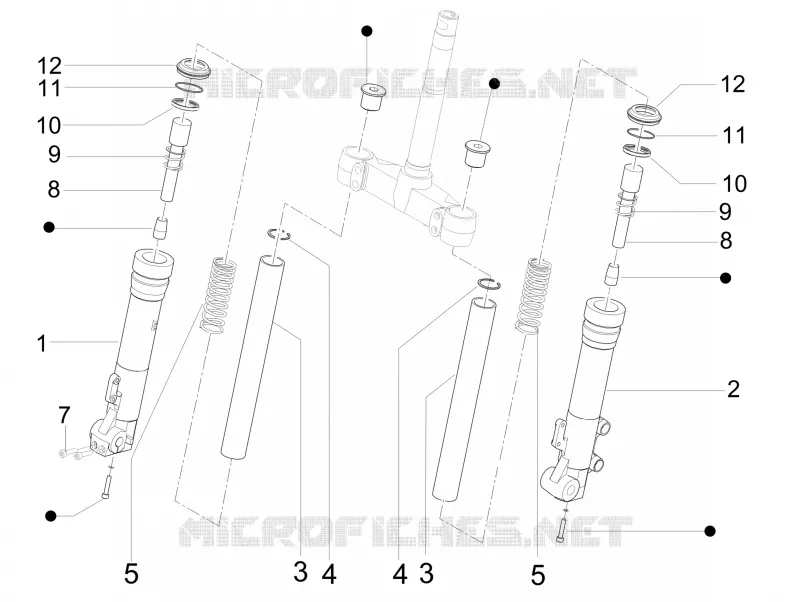

Fork's components (Escorts)
1
2
3
3
4
4
5
5
7
8
8
9
9
10
10
11
11
12
12
1
RH slider
600604
Not Available
2
LH slider
600603
$100,47 Unit Price incl. VAT
3
Fork stanchion ESCORTS
600607
Not Available
4
O-ring
600615
$4,82 Unit Price incl. VAT
5
Fork spring
600614
$7,72 Unit Price incl. VAT
7
screw M6x25
018553
$0,25 Unit Price incl. VAT
8
Fork complete cylinder
600606
$6,03 Unit Price incl. VAT
9
Fork spring
600619
$1,06 Unit Price incl. VAT
10
Fork oil seal
600608
$18,86 Unit Price incl. VAT
11
Ring
600612
$3,65 Unit Price incl. VAT
12
Dust cover
600613
$8,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
