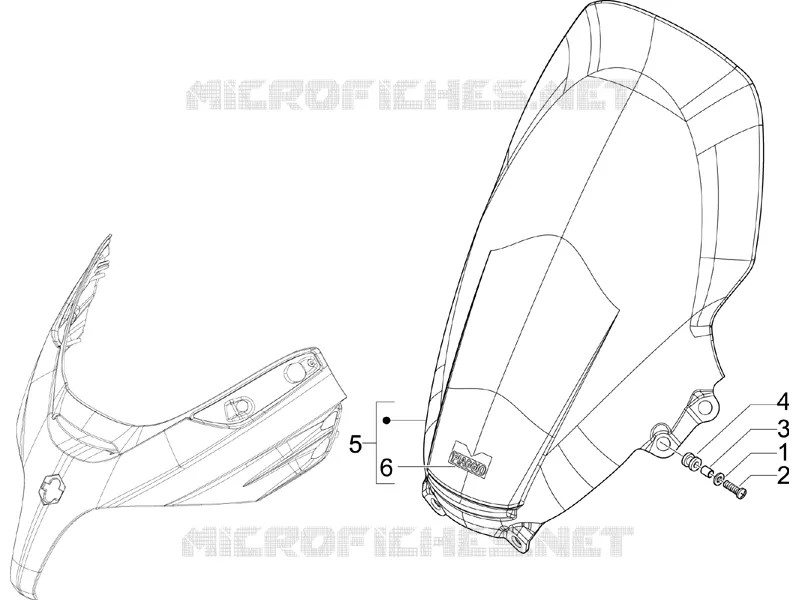

Windshield - Glass
1
2
3
4
5
6
1
Washer d6,2x20x1
013092
$0,17 Unit Price incl. VAT
2
Screw m6x30
271891
$3,65 Unit Price incl. VAT
3
Spacer
257302
$2,95 Unit Price incl. VAT
4
Cylindrical cable grommet
576565
$0,42 Unit Price incl. VAT
5
Windscreen
622607
$96,47 Unit Price incl. VAT
5
Windscreen
624795
Not Available
6
"Piaggio" Plate
624726
$4,22 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
