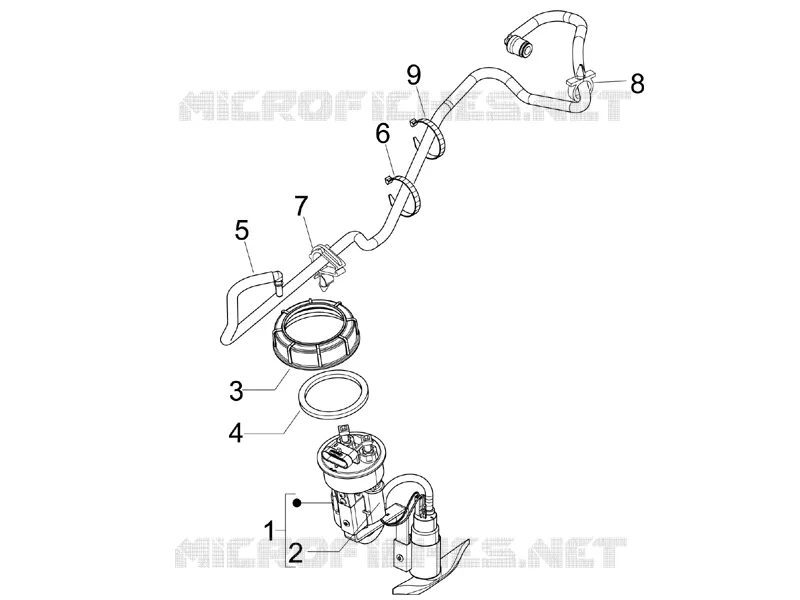

Supply system
1
2
3
4
5
6
7
8
9
1
Complete fuel pump assembly
640518
$281,27 Unit Price incl. VAT
2
Fuel pump filter
639357
$78,73 Unit Price incl. VAT
3
Ring nut
576546
$4,71 Unit Price incl. VAT
4
Gasket
576542
Not Available
5
Fuel feed pipe
623782
$104,82 Unit Price incl. VAT
6
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
7
Hose clamp
217280
Not Available
8
Non return spring l=27
CM006904
$0,25 Unit Price incl. VAT
9
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
