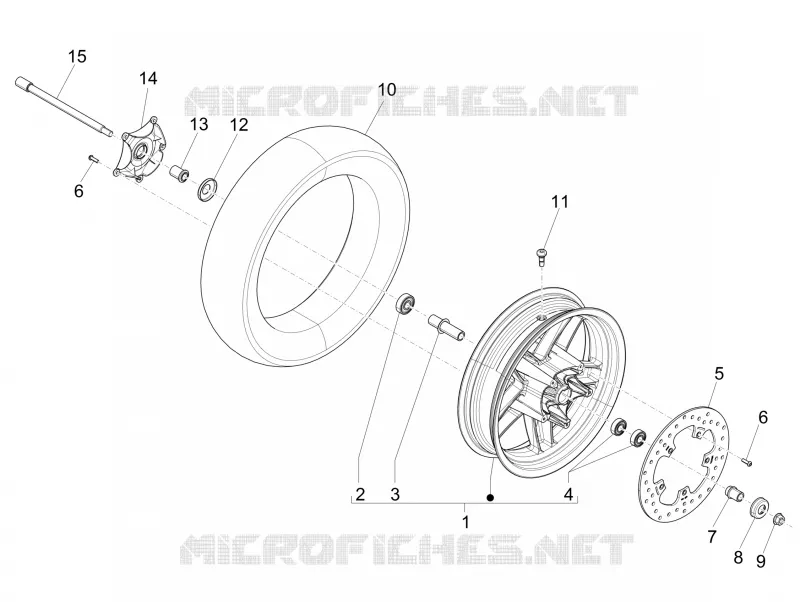

Front wheel
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
1
Front wheel complete with bearings
650666
$124,79 Unit Price incl. VAT
1
Front wheel complete
649942
$122,25 Unit Price incl. VAT
1
FRONT WHEEL
56374R
$453,60 Unit Price incl. VAT
2
Radial ball bearing
649911
$10,67 Unit Price incl. VAT
2
Bearing
564491
$9,18 Unit Price incl. VAT
3
Complete spacer
601870
$15,07 Unit Price incl. VAT
4
Bearing
649910
$10,14 Unit Price incl. VAT
4
Bearing
327187
$11,03 Unit Price incl. VAT
5
Brake disc
56393R
$52,65 Unit Price incl. VAT
6
Hex socket screw M6x20
271147
$0,17 Unit Price incl. VAT
7
Spacer M.Y. 2012
600257
$5,17 Unit Price incl. VAT
8
Cup
600258
$4,07 Unit Price incl. VAT
9
Nut M12
271740
$0,67 Unit Price incl. VAT
10
Tyre (Michelin) 120/70-14"
666381
Not Available
10
Tyre (Michelin) 120/70-14"
601847
Not Available
10
Tyre (Sava) 120/70-14"
949602
Not Available
11
Tubeless valve
597679
$3,03 Unit Price incl. VAT
12
RH spacer
564489
$3,65 Unit Price incl. VAT
13
Short spacer
564448
$8,01 Unit Price incl. VAT
14
Front wheel hub cover
647885
$2,79 Unit Price incl. VAT
14
Front wheel hub cover
599423
$2,68 Unit Price incl. VAT
15
Front wheel axle
564446
$24,90 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
