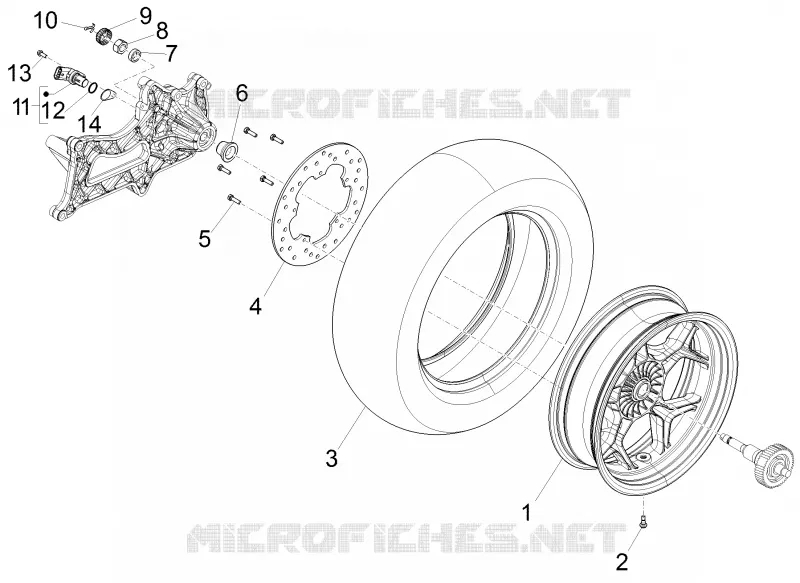

Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Rear wheel
649195
$132,36 Unit Price incl. VAT
1
Rear wheel
56377R
Not Available
1
Rear wheel
650663
$132,36 Unit Price incl. VAT
2
Tubeless valve
597679
$3,03 Unit Price incl. VAT
3
Tyre (Sava) 140/70-14"
949599
Not Available
3
"Rear tire 140/60-13"" (Michelin)"
666382
Not Available
4
Brake disc
649163
Not Available
4
Brake disc
56498R
$72,90 Unit Price incl. VAT
5
Hex screw
031090
$3,65 Unit Price incl. VAT
6
Wheel spacer
848039
$18,12 Unit Price incl. VAT
7
Spacer
597528
$1,51 Unit Price incl. VAT
8
Nut M16x13
563728
$1,42 Unit Price incl. VAT
9
Nut hold cap
194423
$0,48 Unit Price incl. VAT
10
Split pin
012789
$0,16 Unit Price incl. VAT
11
Phase/revolution sensor
832963
Not Available
12
O-ring
430044
$0,29 Unit Price incl. VAT
13
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
14
Spacer for timing sensor
646760
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
