1
Engine displacement
300
2
Model
GTS
3
Year
2021
4
Trim
GTS 300 Super HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
Cdi magneto assy
6
Parts Diagram
Parts Catalog
Cylinder-piston-wrist pin unit
by
MAIN WIRING HARNESS

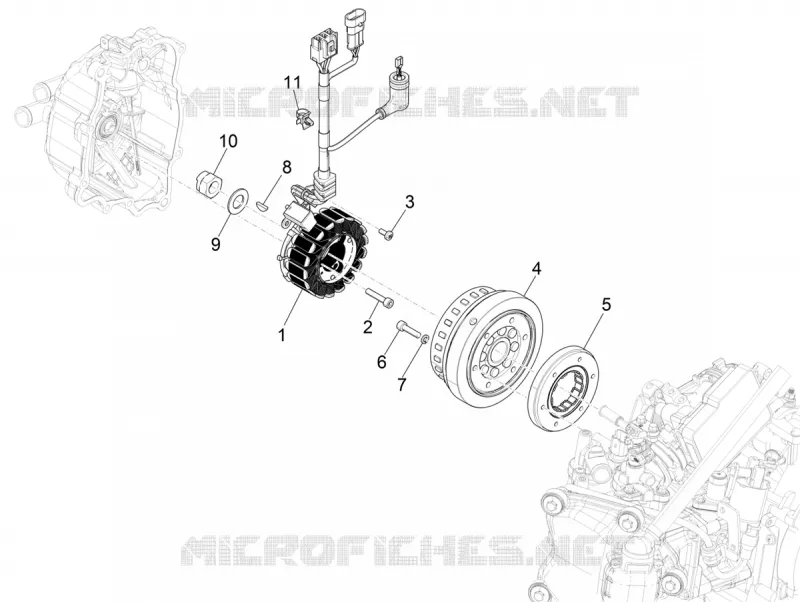

Cdi magneto assy
1
2
3
4
5
6
7
8
9
10
11
1
Stator (Kokusan)
642054
$114,75 Unit Price incl. VAT
2
Low head socket screw M6x30
122637
$0,28 Unit Price incl. VAT
3
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
4
Rotor avec moyeu
1A012853
$270,00 Unit Price incl. VAT
5
Complete freewheel
1A0093875
$43,80 Unit Price incl. VAT
6
Hex socket screw M6x24
877289
$0,34 Unit Price incl. VAT
7
Break washer
479515
$0,08 Unit Price incl. VAT
8
Transmission key
000097
$5,21 Unit Price incl. VAT
9
Plain washer
842385
$0,68 Unit Price incl. VAT
10
Special nut
82952R
$5,90 Unit Price incl. VAT
11
Hose clamp 2,7x132
640879
$0,92 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
