1
Engine displacement
300
2
Model
GTS
3
Year
2021
4
Trim
GTS 300 Super HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
Front glove-box - Knee-guard panel
6
Parts Diagram
Parts Catalog
Rear luggage rack
by
MIRRORS

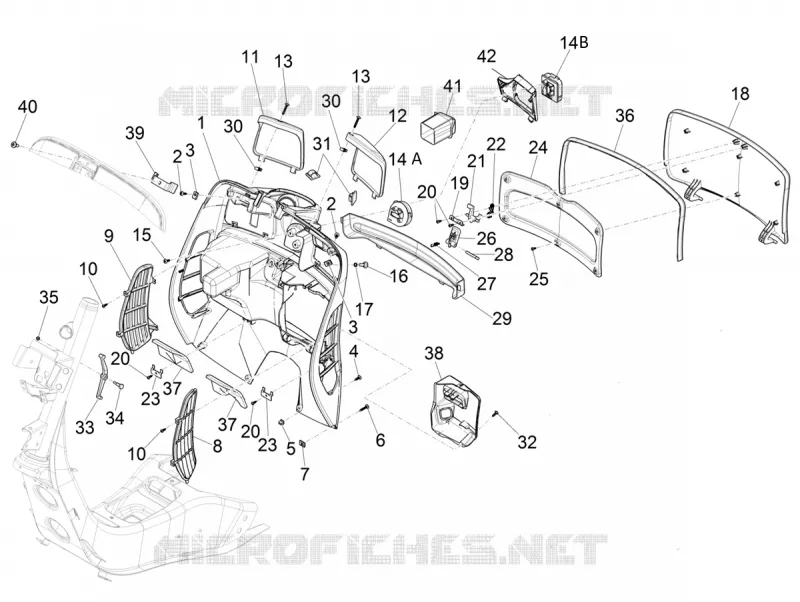

Front glove-box - Knee-guard panel
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
3
3
4
5
5
6
7
8
8
9
9
10
10
11
11
12
12
13
13
14A
14B
15
16
17
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
18
19
20
20
20
21
22
23
23
24
25
25
26
27
28
29
29
30
30
31
32
33
34
35
36
37
37
38
38
39
39
40
41
42
1
Coffre avant peint
1B005767000Y03
Not Available
1
Coffre avant peint
1B009609400V07
Not Available
1
Coffre avant
1B005767
$524,11 Unit Price incl. VAT
1
Coffre avant peint
1B009609400R7
Not Available
1
Coffre avant brut
1B009609
Not Available
1
Coffre avant peint
1B009609400G27
Not Available
1
Coffre avant peint
1B009609400V11
Not Available
1
Coffre avant peint
1B005767000G14
Not Available
1
Coffre avant peint
1B009609400BR
Not Available
1
Coffre avant peint
1B005767000NS
Not Available
1
Coffre avant peint
1B005767000ND
Not Available
1
Coffre avant peint
1B009609400EZ
Not Available
1
Coffre avant peint
1B005767000HY
Not Available
1
Coffre avant peint
1B009609400G14
Not Available
1
Coffre avant peint
1B009609400D13
$168,08 Unit Price incl. VAT
1
Coffre avant peint
1B009609400V06
Not Available
1
Coffre avant peint
1B009609400AX
Not Available
1
Coffre avant peint
1B009609400Q02
Not Available
1
Coffre avant peint
1B009609400ND
Not Available
1
Coffre avant peint
1B005767000BR
$656,14 Unit Price incl. VAT
1
Coffre avant peint
1B009609400NS
Not Available
1
Coffre avant peint
1B005767000LF
Not Available
2
Self tapping screw
CM178608
$0,16 Unit Price incl. VAT
2
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
3
Plate
CM017408
$0,25 Unit Price incl. VAT
4
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
5
Expansion plug
157716
$0,08 Unit Price incl. VAT
5
Expansion plug
199190
$2,95 Unit Price incl. VAT
6
Self-tapping screw
CM178610
$0,17 Unit Price incl. VAT
7
Spring plate
CM017410
$0,34 Unit Price incl. VAT
8
Grille gauche
1B0034460000C
$24,90 Unit Price incl. VAT
8
Grille gauche
1B009610
$5,41 Unit Price incl. VAT
9
Grille droite
1B009611
$5,41 Unit Price incl. VAT
9
Grille droite
1B0034470000C
$24,90 Unit Price incl. VAT
10
Plug screw
268596
$0,08 Unit Price incl. VAT
11
Right flap
577396000C
$15,22 Unit Price incl. VAT
11
Volet D de planche de bord
1B0094360000C
$4,24 Unit Price incl. VAT
12
Left flap
577395000C
$15,22 Unit Price incl. VAT
12
Volet G de planche de bord
1B0094350000C
$4,24 Unit Price incl. VAT
13
Self tapping screw
CM178607
$3,65 Unit Price incl. VAT
14A
Bag holder hook
575819
$12,88 Unit Price incl. VAT
14B
Crochet porte-sacs
1B009428
$12,31 Unit Price incl. VAT
15
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
16
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
17
Washer 8,6x6,2x1
641548
$3,65 Unit Price incl. VAT
18
Porte de coffre avant
57717500LF
Not Available
18
Porte de coffre avant
57717540R7
Not Available
18
Glove compartment door
R1U000058
Not Available
18
Porte de coffre avant
57717540NS
Not Available
18
Glove compartment door
577175
$149,25 Unit Price incl. VAT
18
Capot coffre avant peint
57717540V07
Not Available
18
Porte de coffre avant
57717500G14
Not Available
18
Porte de coffre avant
57717540BR
Not Available
18
Porte de coffre peinte
57717500HY
Not Available
18
Porte de coffre avant
57717540AX
Not Available
18
Porte de coffre avant
57717540V06
Not Available
18
Porte de coffre avant
57717540D13
Not Available
18
Porte de coffre avant
57717540EZ
Not Available
18
Capot coffre avant peint
57717540Q02
Not Available
18
Porte de coffre avant
57717540V11
Not Available
18
Glove compartment door
57717500ND
$185,67 Unit Price incl. VAT
18
Capot coffre avant peint
57717500Y03
Not Available
18
Porte de coffre avant
57717540G14
Not Available
18
Porte de coffre avant
57717540G27
Not Available
18
Porte de coffre avant
57717540ND
Not Available
18
Glove compartment door
57717500BR
$185,67 Unit Price incl. VAT
18
Glove compartment door
57717500NS
Not Available
19
Square
252420
$0,59 Unit Price incl. VAT
20
Plug screw
268596
$0,08 Unit Price incl. VAT
21
Pawl
575607
$1,35 Unit Price incl. VAT
22
Spring
1B003658
$0,76 Unit Price incl. VAT
23
Door fixing bracket
257614
$1,09 Unit Price incl. VAT
24
Counter flap
577468
$27,67 Unit Price incl. VAT
25
Self tapping screw
297498
$0,08 Unit Price incl. VAT
25
Self tapping screw
296141
$0,08 Unit Price incl. VAT
26
Lever
577861
$1,35 Unit Price incl. VAT
27
Spring
577399
$2,61 Unit Price incl. VAT
28
Pin
577400
$5,38 Unit Price incl. VAT
29
Rim
577447
$10,76 Unit Price incl. VAT
29
Encadrement
1B009427
$4,75 Unit Price incl. VAT
30
Plate
CM017406
$3,65 Unit Price incl. VAT
31
Spring clamp
577594
$0,42 Unit Price incl. VAT
32
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
33
Special screw
299972
$0,50 Unit Price incl. VAT
34
Lock lever
577453
$5,38 Unit Price incl. VAT
35
Self locking nut
577620
$0,08 Unit Price incl. VAT
36
Flap packing
CM006311
$7,23 Unit Price incl. VAT
37
Sound proof panel
620693
$7,23 Unit Price incl. VAT
38
Habillage interne top case
1B009743
$3,42 Unit Price incl. VAT
38
Top box cover
1B001752
$24,59 Unit Price incl. VAT
39
Plaque
1B006769
$8,11 Unit Price incl. VAT
39
Plaque
1B005869
$7,69 Unit Price incl. VAT
40
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
41
Cover
620452
$5,38 Unit Price incl. VAT
42
Central flap
1B0097440000C
$3,07 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
