CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Voltage Regulators - Electronic Control Units (ecu) - H.T. Coil

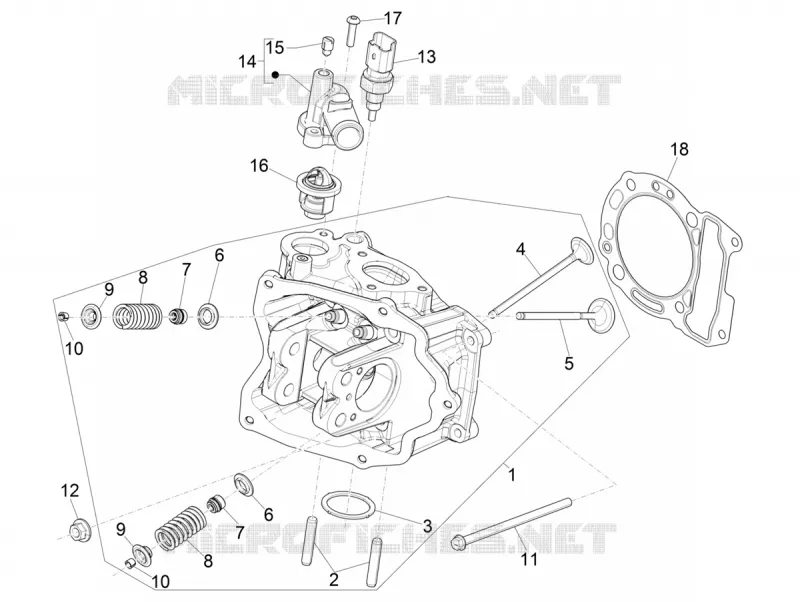

CYLINDER HEAD - VALVES
1
2
3
4
5
6
6
7
7
8
8
9
9
10
10
11
12
13
13
14
15
15
16
17
18
1
Culasse cylindre complète
1A0134325
$942,78 Unit Price incl. VAT
2
Stud bolt M7
435629
$0,67 Unit Price incl. VAT
3
Exhaust pipe gasket
480853
$4,89 Unit Price incl. VAT
4
Soupape d'échappement ø 22.2 mm
1A014447
$32,28 Unit Price incl. VAT
5
Soupape d'admission ø 25 mm
1A009730
$32,28 Unit Price incl. VAT
6
Lower cap
483711
$1,35 Unit Price incl. VAT
7
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
8
Ressort
1A009718
$7,02 Unit Price incl. VAT
9
Upper cap
483914
$0,91 Unit Price incl. VAT
10
Valve half-cone
285846
$2,94 Unit Price incl. VAT
11
screw M6x112,5
B016807
$1,26 Unit Price incl. VAT
12
Ecrou M8 x 1.25
1A010537
$3,65 Unit Price incl. VAT
13
Bulbe de température d’eau
1A021287R
$23,76 Unit Price incl. VAT
13
Bulbe de température d’eau
1A023021R
$47,85 Unit Price incl. VAT
14
Raccord sortie eau
1A011220
$38,43 Unit Price incl. VAT
15
Vis de purge
1A013452
$1,81 Unit Price incl. VAT
15
Vis de purge
1A011176
Not Available
16
Thermostat
82831R5
$32,18 Unit Price incl. VAT
17
Torx Screw M5x20
B016808
$0,20 Unit Price incl. VAT
18
Joint tête 0,3 mm
1A014002
$22,96 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
