1
Engine displacement
300
2
Model
GTS
3
Year
2021
4
Trim
GTS 300 Super HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog
Crankcase
6
Parts Diagram
Parts Catalog
Wheel huosing - Mudguard
by
Handlebars - Master cil.

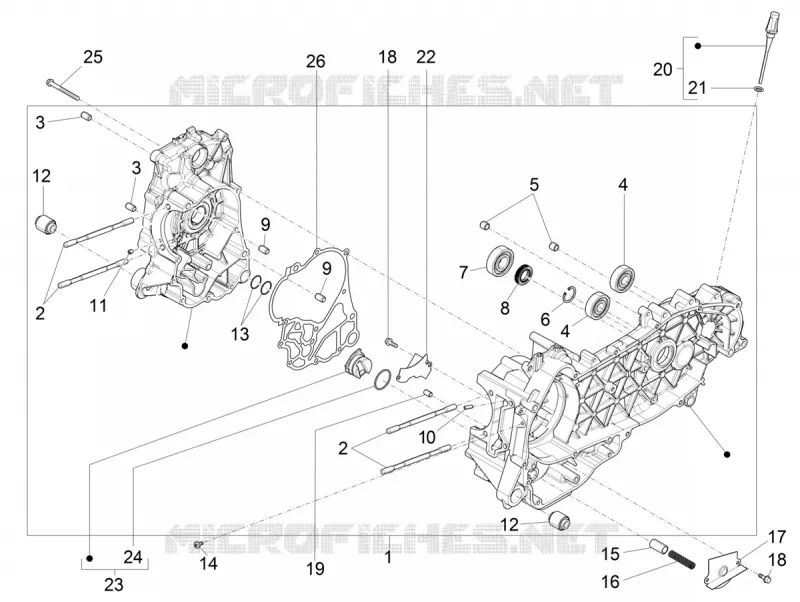

Crankcase
1
1
2
2
3
3
4
4
5
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
1
Carter complet 1e cat.
1A01206301
$1 908,92 Unit Price incl. VAT
1
Carter complet 2e cat.
1A01206302
$1 908,92 Unit Price incl. VAT
2
Stud bolt
1A003628R
$10,95 Unit Price incl. VAT
3
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
4
Radial ball bearing 15x42x13
83018R
$4,46 Unit Price incl. VAT
5
Locating dowel
B015957
$0,59 Unit Price incl. VAT
6
Circlip 25x26,9x1,2
B015959
$0,34 Unit Price incl. VAT
7
Radial ball bearing 20x47x14
833701
Not Available
8
Gasket ring 20-32-7
82878R
$10,25 Unit Price incl. VAT
9
Pin d.9,5 h=15
B015956
$0,75 Unit Price incl. VAT
10
Nozzle
484034
$6,44 Unit Price incl. VAT
11
Nozzle D 1.1
844582
$0,05 Unit Price incl. VAT
12
Silent-block
486081
$6,73 Unit Price incl. VAT
13
O-ring
273754
$0,16 Unit Price incl. VAT
14
Screw M5x10
018575
$2,95 Unit Price incl. VAT
15
Oil pressure valve
829661
$6,44 Unit Price incl. VAT
16
Spring
485655
$1,26 Unit Price incl. VAT
17
Lower oil bulkhead
483767
$0,38 Unit Price incl. VAT
18
Screw w/ flange M5x16
830061
$0,34 Unit Price incl. VAT
19
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
20
Complete oil level dipstick
832130
$2,94 Unit Price incl. VAT
21
Gasket ring 14,43x9,19x2,62
827085
$2,99 Unit Price incl. VAT
22
Upper oil bulkhead
485047
$0,48 Unit Price incl. VAT
23
Filter door insert
845861
$3,82 Unit Price incl. VAT
24
Gasket
431065
$0,42 Unit Price incl. VAT
25
Screw w/ flange M6x60
B016425
$1,01 Unit Price incl. VAT
26
Gasket
875111
$3,34 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
