1
Engine displacement
300
2
Model
GTS
3
Year
2021
4
Trim
GTS 300 Super HPE 4T 4V ie Euro 5 ABS
5
Parts Catalog

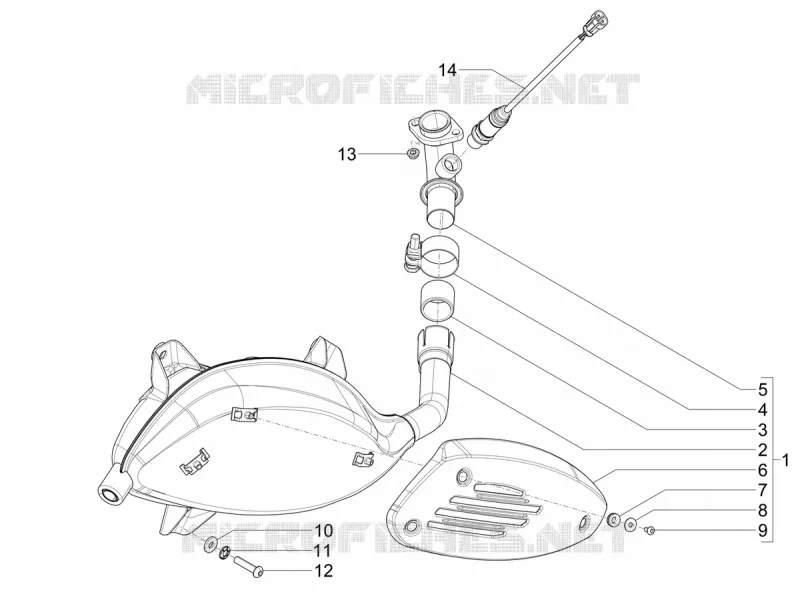

EXHAUST
6
Parts Diagram
Parts Catalog
Driven pulley
by
Tank
EXHAUST
1
2
2
3
4
5
5
5
6
6
6
7
8
8
9
9
9
10
11
12
13
14
1
Pot d'échappement avec protection
1A0195355
Not Available
2
Silencer complete with brackets
1A022446
$922,94 Unit Price incl. VAT
2
Silencer complete with brackets
1A019449
Not Available
3
Graphite bushing
8263885
$36,93 Unit Price incl. VAT
4
Collier
1A017625
$14,49 Unit Price incl. VAT
5
Collecteur échap.
1A019450
Not Available
5
Collecteur échap.
1A024033
Not Available
5
Collecteur échap.
1A024418
Not Available
6
Protection
1A011990
$44,12 Unit Price incl. VAT
6
Protection
1A021643
$70,02 Unit Price incl. VAT
6
Protection (black)
1A021874
Not Available
7
Rubber spacer
841782
$0,84 Unit Price incl. VAT
8
Flat washer
827526
$0,25 Unit Price incl. VAT
8
Flat washer
844927
$0,50 Unit Price incl. VAT
9
screw
848766
Not Available
9
Vis M5x12
AP8152267
$0,34 Unit Price incl. VAT
9
screw M5x10
842908
Not Available
10
Flat washer 19,3x8,2x2,5
848452
$0,84 Unit Price incl. VAT
11
Spring washer 16x8,2x2,2
834187
$0,16 Unit Price incl. VAT
12
Hex screw M8x30
599208
$0,62 Unit Price incl. VAT
13
Nut
436947
$0,42 Unit Price incl. VAT
14
Sonde lamda
1A014335
$129,71 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
