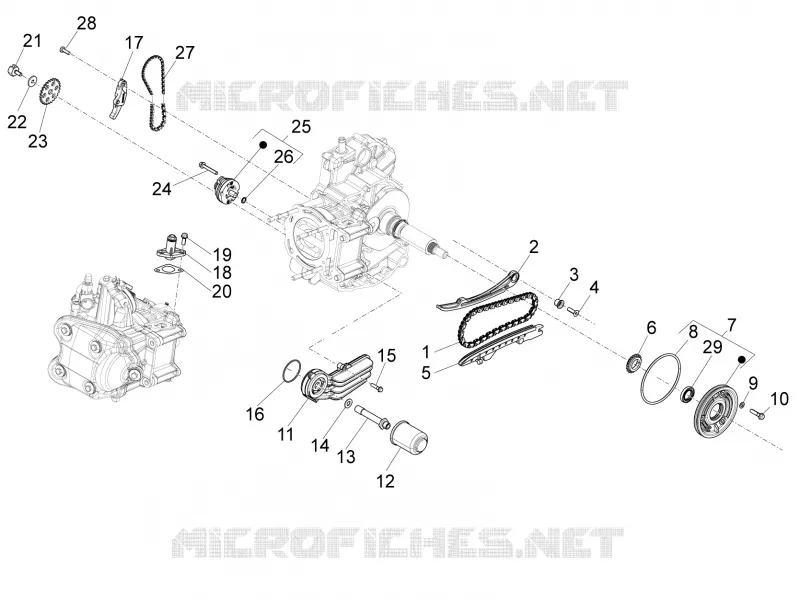

Oil pump
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
1
Camshaft chain
82992R
$26,06 Unit Price incl. VAT
2
Chain tensioner rod
B015195
$5,67 Unit Price incl. VAT
3
Spacer
825737
$1,10 Unit Price incl. VAT
4
Screw
874037
$0,42 Unit Price incl. VAT
5
Chain guide plate
880645
$8,16 Unit Price incl. VAT
6
Timing chain pinion
82782R
$7,06 Unit Price incl. VAT
7
Timing system cover cpl.
B0161755
$52,12 Unit Price incl. VAT
8
Gasket
B016176
$4,82 Unit Price incl. VAT
9
Plain washer
879027
$0,50 Unit Price incl. VAT
10
Screw w/ flange M6x25
B016774
$0,34 Unit Price incl. VAT
11
Air filter support
1A0001455
$58,69 Unit Price incl. VAT
12
Oil filter
82635R
$12,36 Unit Price incl. VAT
13
Special screw
B017720
$9,08 Unit Price incl. VAT
14
Shim washer
481015
$0,50 Unit Price incl. VAT
15
Vis bride
B018517
$0,22 Unit Price incl. VAT
16
O-Ring
B018141
$2,97 Unit Price incl. VAT
17
Chain tensioner sliding block
B015581
$13,37 Unit Price incl. VAT
18
Chain tensioner bracket
289919
Not Available
19
Screw w/ flange M6x16
B016777
$0,16 Unit Price incl. VAT
20
Guarnizione cilindro/tendicatena
847928
$0,42 Unit Price incl. VAT
21
Special screw
878753
$15,47 Unit Price incl. VAT
22
Belleville spring Ø6,4xØ20x2
436695
$0,59 Unit Price incl. VAT
23
Oil pump gear
B013970
$5,53 Unit Price incl. VAT
24
Screw w/ flange M5x35
829593
$0,50 Unit Price incl. VAT
25
Oil pump assembly
83085R
$19,84 Unit Price incl. VAT
26
Snap ring
871301
$0,50 Unit Price incl. VAT
27
Oil pump chain
831333
$9,32 Unit Price incl. VAT
28
Torx Screw
B017296
$0,50 Unit Price incl. VAT
29
Gasket ring 30x40x7
B014441
$22,46 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
