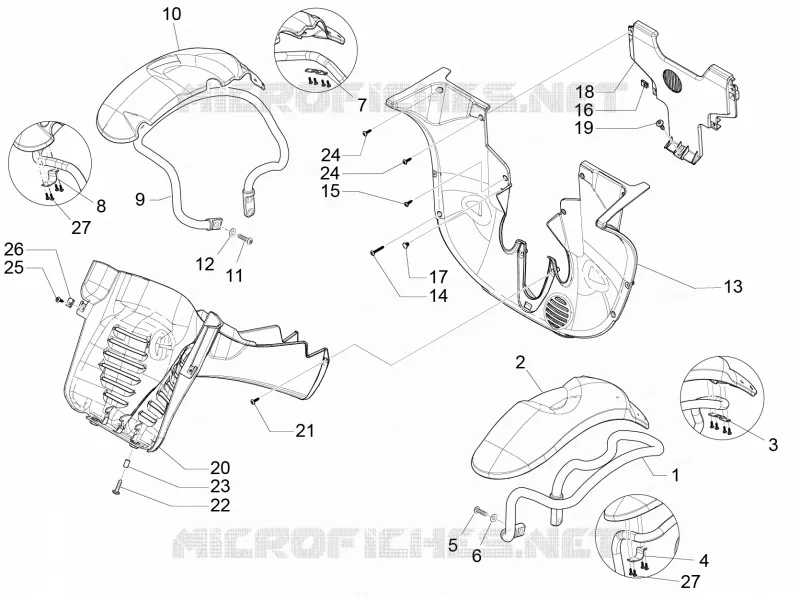

Wheel huosing - Mudguard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
24
25
26
27
27
1
Left mudguard pipe with U.P.
1C000994
$246,84 Unit Price incl. VAT
2
Left front mudguard
1B004095
$78,24 Unit Price incl. VAT
3
Rear bracket
651271
$11,69 Unit Price incl. VAT
4
Front bracket
1C000992
$8,16 Unit Price incl. VAT
5
Hex socket screw
564606
$0,28 Unit Price incl. VAT
6
Spring washer
709047
$0,08 Unit Price incl. VAT
7
Rear bracket
651271
$11,69 Unit Price incl. VAT
8
Front bracket
1C000992
$8,16 Unit Price incl. VAT
9
Right mudguard pipe with U.P.
1C000997
$246,84 Unit Price incl. VAT
10
Right front mudguard
1B004096
$78,24 Unit Price incl. VAT
11
Hex socket screw
564606
$0,28 Unit Price incl. VAT
12
Spring washer
709047
$0,08 Unit Price incl. VAT
13
Wheel compartment
623255
$76,85 Unit Price incl. VAT
14
Screw
CM180703
$0,92 Unit Price incl. VAT
15
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
16
Spring plate
CM017410
$0,34 Unit Price incl. VAT
17
Cover
090958
$5,38 Unit Price incl. VAT
18
Wheel housing central part
672142
$16,91 Unit Price incl. VAT
19
Metric screw M6x22
CM179201
$0,34 Unit Price incl. VAT
20
Wheel housing central closing
1B001210
$63,02 Unit Price incl. VAT
21
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
22
Metric screw TBC
CM179302
$0,55 Unit Price incl. VAT
23
Spacer
1B001259
$3,65 Unit Price incl. VAT
24
Self tapping screw D4x16
CM180701
$0,16 Unit Price incl. VAT
25
Self tapping screw D4.2x13
CM178603
$0,16 Unit Price incl. VAT
26
Spring plate
CM017410
$0,34 Unit Price incl. VAT
27
Self tapping screw
297498
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
