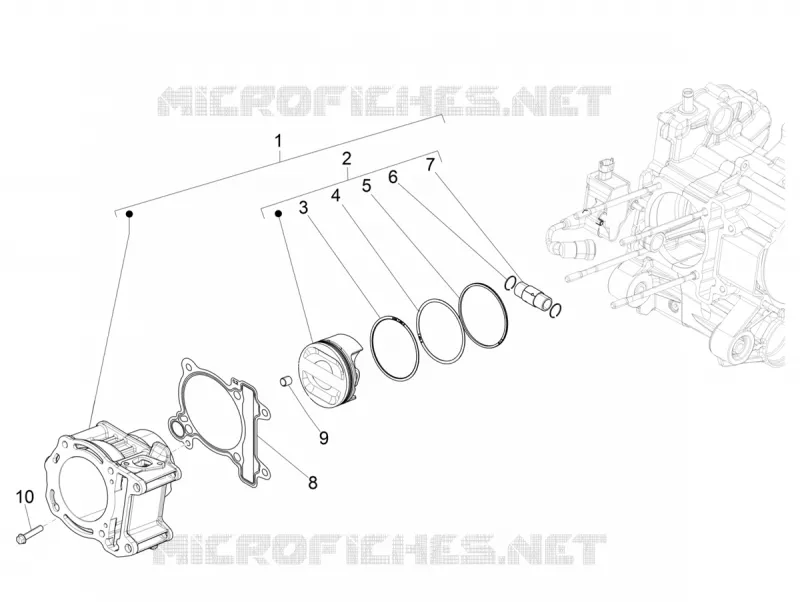

Cylinder-piston-wrist pin unit
1
2
2
2
2
3
4
5
6
7
8
8
8
9
10
1
Groupe cylindre - piston - axe du piston - segments - bagues
1A013567
$369,97 Unit Price incl. VAT
2
Groupe piston axe cat. "N"
1A0135680N
Not Available
2
Groupe piston axe cat. "O"
1A0135680O
$108,00 Unit Price incl. VAT
2
Groupe piston axe cat "M"
1A0135680M
$130,87 Unit Price incl. VAT
2
Groupe piston axe cat. "P"
1A0135680P
$108,00 Unit Price incl. VAT
3
Compression ring Ø78x1x3.35
B015279
$36,45 Unit Price incl. VAT
4
Oil scraper ring Ø78x1x3.25
B015280
$31,97 Unit Price incl. VAT
5
Oil scraper ring Ø78x2x3.2
B015281
$13,37 Unit Price incl. VAT
6
Pin retainer circlip
878897
$0,25 Unit Price incl. VAT
7
Gudgeon bucket
878896
$22,29 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,4 mm
1A000729
$23,53 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,3 mm
1A000728
$23,53 Unit Price incl. VAT
8
Crankcase/cylinder gasket 0,2 mm
1A000727
$23,53 Unit Price incl. VAT
9
Locating dowel
435571
$0,50 Unit Price incl. VAT
10
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
