1
Engine displacement
350
2
Model
MP3
3
Year
2018
4
Trim
MP3 350 ABS E4
5
Parts Catalog
CYLINDER HEAD - VALVES
6
Parts Diagram
Parts Catalog
Side cover - Spoiler
by
Transmissions

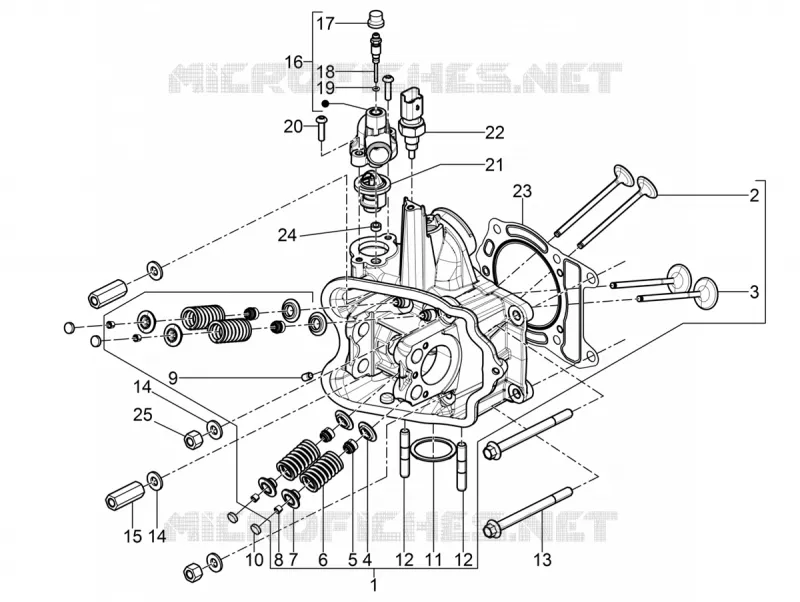

CYLINDER HEAD - VALVES
1
2
3
4
5
6
7
8
9
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
10
11
12
12
13
14
14
15
16
17
18
19
20
21
22
23
24
25
1
Cylinder head assembly
1A007860
$622,32 Unit Price incl. VAT
2
Exaust valve
880602
$26,14 Unit Price incl. VAT
3
Valve, in
880601
$7,31 Unit Price incl. VAT
4
Lower cap
878859
$0,84 Unit Price incl. VAT
5
Valve gasket ring
436438
$1,34 Unit Price incl. VAT
6
Valve spring
878860
$4,82 Unit Price incl. VAT
7
Upper cap
879813
$6,38 Unit Price incl. VAT
8
Valve half-cone
285846
$2,94 Unit Price incl. VAT
9
Plug M6x10
842360
$0,75 Unit Price incl. VAT
10
Calibrated pad 3,40 mm
CM163221
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,00 mm
CM163213
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,75 mm
CM163208
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,85 mm
CM163210
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,90 mm
CM163211
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,65 mm
CM163206
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,05 mm
CM163214
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,45 mm
CM163202
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,30 mm
CM163219
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,25 mm
CM163218
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,55 mm
CM163204
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,35 mm
CM163220
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,70 mm
CM163207
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,95 mm
CM163212
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,50 mm
CM163203
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,60 mm
CM163205
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,80 mm
CM163209
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,20 mm
CM163217
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,10 mm
CM163215
$3,11 Unit Price incl. VAT
10
Calibrated pad 2,40 mm
CM163201
$3,11 Unit Price incl. VAT
10
Calibrated pad 3,15 mm
CM163216
$3,11 Unit Price incl. VAT
11
Exhaust pipe gasket
879662
$4,82 Unit Price incl. VAT
12
Stud bolt
1A003632R
$3,70 Unit Price incl. VAT
13
Screw w/ flange
B013593
$3,65 Unit Price incl. VAT
14
Flat washer
B014079
$3,65 Unit Price incl. VAT
15
High hexagonal nut
B013371
$3,65 Unit Price incl. VAT
16
Thermostat cover
B018147
$38,43 Unit Price incl. VAT
17
Bleed valve cap
063435
$0,34 Unit Price incl. VAT
18
Bleed screw
845605
$3,21 Unit Price incl. VAT
19
Gasket
297027
$1,10 Unit Price incl. VAT
20
Torx Screw M5x20
B016808
$0,20 Unit Price incl. VAT
21
Thermostat
82831R5
$32,18 Unit Price incl. VAT
22
Temperature gauge
640485
Not Available
23
Cylinder gasket/head
B015183
$7,94 Unit Price incl. VAT
24
Packing
878906
$3,65 Unit Price incl. VAT
25
Nut
015335
$0,11 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
