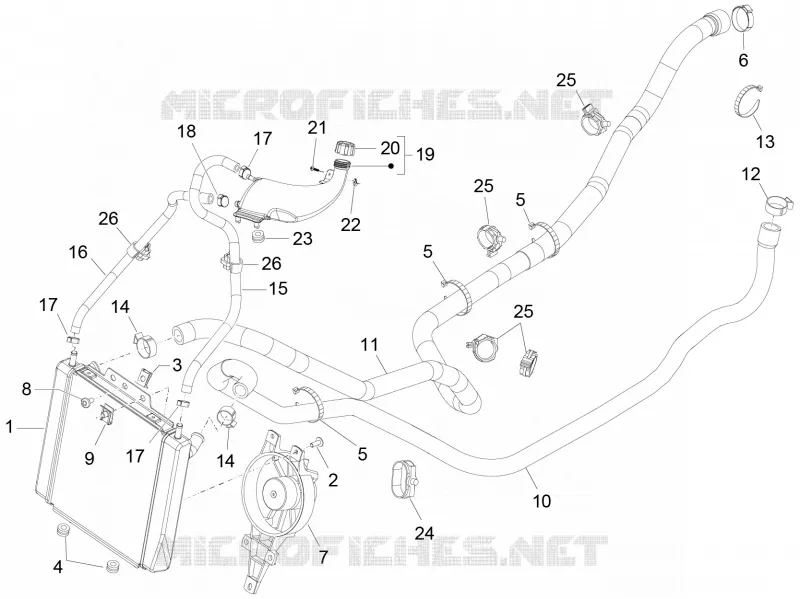

Cooling system
1
2
3
4
5
5
5
6
7
8
9
10
11
12
13
14
14
15
16
17
17
17
18
19
20
21
22
23
24
25
25
25
26
26
1
Water cooler
1B001908
$262,83 Unit Price incl. VAT
2
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
3
Spring plate M6
254485
$0,34 Unit Price incl. VAT
4
Lower rubber
258904
$0,25 Unit Price incl. VAT
5
Lock-strap L=277
257134
$0,25 Unit Price incl. VAT
6
Hose clamp
CM001915
$1,03 Unit Price incl. VAT
7
Electric fan assy.
58211R
$69,69 Unit Price incl. VAT
8
Screw M6x16
CM179301
$0,25 Unit Price incl. VAT
9
Spring plate M6
254485
$0,34 Unit Price incl. VAT
10
Tuyau de raccordement culasse-radiateur
1B005441
Not Available
11
Tuyau pompe-radiateur
1B005440
Not Available
12
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
13
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
14
Hose clamp
CM001907
$0,84 Unit Price incl. VAT
15
Manifold-union breather pipe
622581
$8,16 Unit Price incl. VAT
16
Cooler-expansion tank pipe
622582
$7,23 Unit Price incl. VAT
17
Hose clamp
CM001903
$0,84 Unit Price incl. VAT
18
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
19
Coolant tank
653463
Not Available
20
Expansion tank plug
623673
$15,97 Unit Price incl. VAT
21
Self-tap screw
CM178604
$0,08 Unit Price incl. VAT
22
Spring plate
CM017410
$0,34 Unit Price incl. VAT
23
Lower rubber
258904
$0,25 Unit Price incl. VAT
24
Non return spring
CM006902
$0,92 Unit Price incl. VAT
25
Pipes/cables retainer spring
CM006903
$1,43 Unit Price incl. VAT
26
Non return spring
CM017808
$4,82 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
