1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog

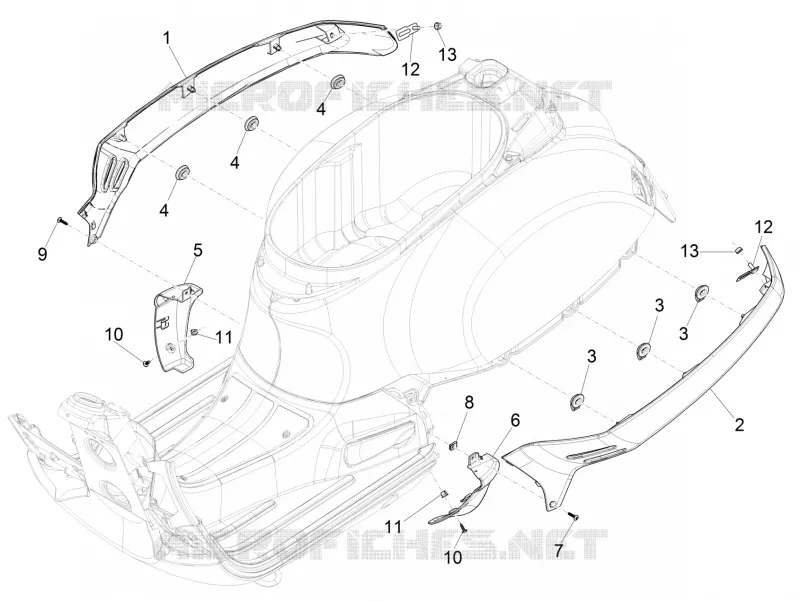

Side cover - Spoiler
6
Parts Diagram
Parts Catalog
Crankshaft
by
Air filter
Side cover - Spoiler
1
2
3
3
3
4
4
4
5
6
7
8
9
10
10
11
11
12
12
13
13
1
Right side cover
621138
$102,98 Unit Price incl. VAT
1
Right side cover
62113850VV
Not Available
2
Left side cover
1B003899500VV
$127,87 Unit Price incl. VAT
2
Left side cover
1B003899
$102,98 Unit Price incl. VAT
3
Rubber pad
1B003782
$4,62 Unit Price incl. VAT
4
Spoiler right terminal
1B003904500VV
Not Available
5
Spoiler right terminal
1B003904
$47,65 Unit Price incl. VAT
6
Spoiler left terminal
1B000591500VV
$56,87 Unit Price incl. VAT
6
Spoiler left terminal
1B000591
$47,65 Unit Price incl. VAT
7
Self-tapping screw
CM179101
$0,30 Unit Price incl. VAT
8
Spring plate
CM017410
$0,34 Unit Price incl. VAT
9
Self-tap screw
CM178609
$0,17 Unit Price incl. VAT
10
Self tapping screw D4.2x16
CM178601
$0,16 Unit Price incl. VAT
11
Expansion plug
157716
$0,08 Unit Price incl. VAT
12
Fairing fixing plate
623575
$3,65 Unit Price incl. VAT
13
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
