1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog

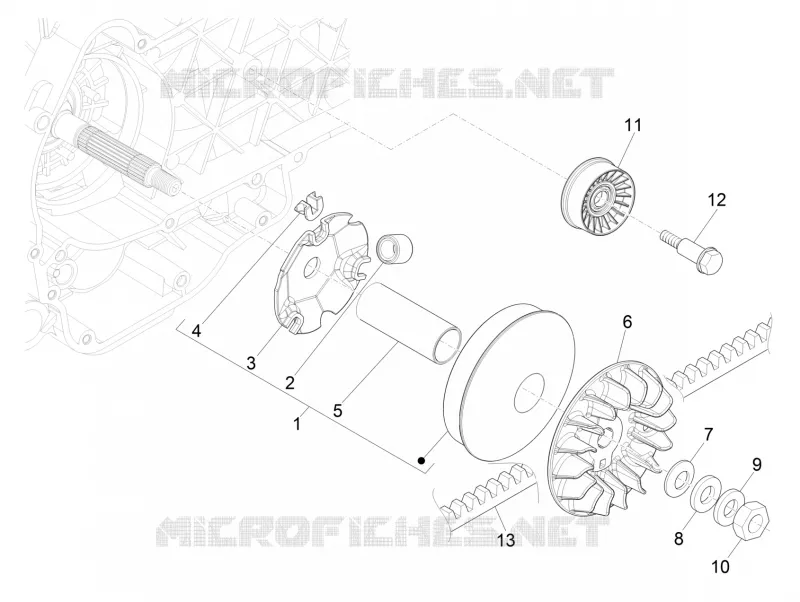

Driving pulley
6
Parts Diagram
Parts Catalog
Rear luggage rack
by
Front wheel
Driving pulley
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Complete roller housing
CM1444085
$108,00 Unit Price incl. VAT
2
Pin roller
849480
$1,62 Unit Price incl. VAT
3
Roller contrast
842204
$8,31 Unit Price incl. VAT
4
Sliding block
843028
$0,51 Unit Price incl. VAT
5
Spacer
483889
$19,92 Unit Price incl. VAT
6
Fixed pulley
840193
$13,80 Unit Price incl. VAT
7
Belleville spring
880950
$2,69 Unit Price incl. VAT
8
Flat washer 12.1x36x2
840533
$1,60 Unit Price incl. VAT
9
Plain washer 17x32x1
434885
$0,44 Unit Price incl. VAT
10
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT
11
Toothed pulley
833989
$17,10 Unit Price incl. VAT
12
Special screw
828217
$3,65 Unit Price incl. VAT
13
V-belt
82941R
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
