1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog
Rear wheel
6

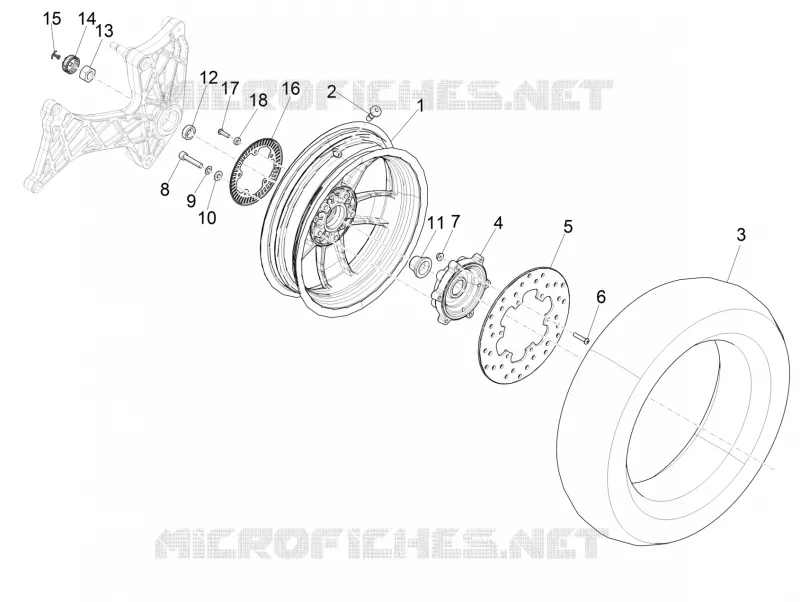

Parts Diagram
Parts Catalog
Crankcase
by
Locks
Rear wheel
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1
Rear wheel 3.00 x 12"
1C003039
$696,60 Unit Price incl. VAT
2
Tubeless valve
597679
$3,03 Unit Price incl. VAT
3
(Michelin) Tyre 130/70-12"
1C000743
Not Available
3
Tyre (Sava) 130/70-12"
1C000798
Not Available
4
Rear wheel hub
598715
$88,52 Unit Price incl. VAT
5
Brake disc
56484R
$35,10 Unit Price incl. VAT
6
screw
597564
$0,50 Unit Price incl. VAT
7
Self locking nut
597565
$0,50 Unit Price incl. VAT
8
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
9
Spring washer
709047
$0,08 Unit Price incl. VAT
10
Flat washer 8,2x17x2,5
828961
$0,28 Unit Price incl. VAT
11
Rear wheel spacer
1C002344
$18,12 Unit Price incl. VAT
12
Spacer
1C002175
$9,41 Unit Price incl. VAT
13
Nut M16x13
563728
$1,42 Unit Price incl. VAT
14
Nut hold cap
194423
$0,48 Unit Price incl. VAT
15
Split pin
012789
$0,16 Unit Price incl. VAT
16
ABS rear tone wheel
1C001043
$21,37 Unit Price incl. VAT
17
Hex socket screw M6x20
667152
$0,26 Unit Price incl. VAT
18
Spacer
1C001044
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
