1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog
Rear luggage rack
6
Parts Diagram
Parts Catalog
Cooling system
by
Driving pulley

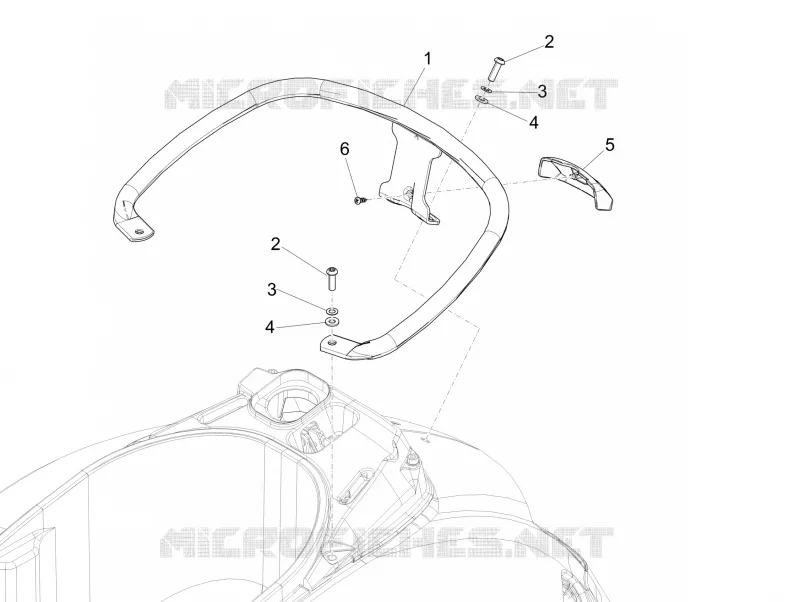

Rear luggage rack
1
2
2
3
3
4
4
5
6
1
Complete luggage carrier handle
1B000654
$99,45 Unit Price incl. VAT
2
screw torx
623920
$3,70 Unit Price incl. VAT
3
Notched washer 6,6x11x0
012533
$0,67 Unit Price incl. VAT
4
Washer 6.4x13x1.5
013777
$0,08 Unit Price incl. VAT
5
Saddle rear cover
623336
$12,30 Unit Price incl. VAT
6
Plug screw
268596
$0,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
