1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog
Wheel huosing - Mudguard
6

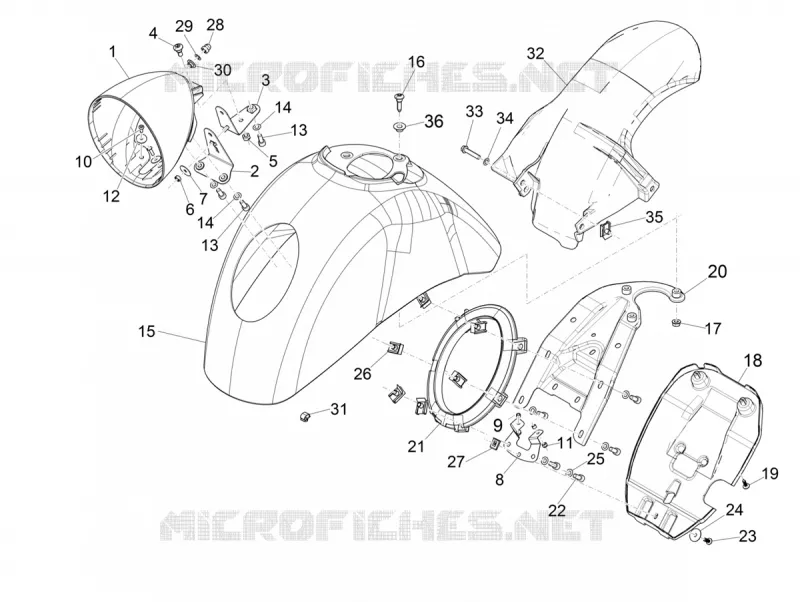

Parts Diagram
Parts Catalog
Frame/bodywork
by
Handlebars - Master cil.
Wheel huosing - Mudguard
1
2
3
3
4
5
6
7
8
9
10
11
12
13
13
14
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
1
Headlight cover
64784650VV
$242,84 Unit Price incl. VAT
1
Headlight cover
647846
$184,75 Unit Price incl. VAT
2
Bracket with up
647886
$8,16 Unit Price incl. VAT
3
Headlight anchoring bracket
647887
$18,75 Unit Price incl. VAT
4
Metric screw TBC
259348
$2,99 Unit Price incl. VAT
5
Self locking nut M6
195482
$0,19 Unit Price incl. VAT
6
Nut
012112
$0,29 Unit Price incl. VAT
7
Washer
004021
$2,27 Unit Price incl. VAT
8
Anchoring bracket
648060
$14,30 Unit Price incl. VAT
9
Spacer
648059
$3,65 Unit Price incl. VAT
10
screw
621914
$3,65 Unit Price incl. VAT
11
Self locking nut
577620
$0,08 Unit Price incl. VAT
12
Washer
013963
$0,19 Unit Price incl. VAT
13
screw
239687
$0,34 Unit Price incl. VAT
14
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
15
Front mudguard
64789150VV
Not Available
15
Front mudguard
647891
$300,02 Unit Price incl. VAT
16
Screw metrica
CM179303
$0,34 Unit Price incl. VAT
17
Self locking nut M6
288245
$0,16 Unit Price incl. VAT
18
Front splash guard
1C001852
$29,51 Unit Price incl. VAT
19
Screw M4,2x13
259349
$0,17 Unit Price incl. VAT
20
Headlight support clamp
1C001236
$31,21 Unit Price incl. VAT
21
Suspension flange
648061
$10,76 Unit Price incl. VAT
22
screw
239687
$0,34 Unit Price incl. VAT
23
screw
268418
$3,65 Unit Price incl. VAT
24
Washer
004021
$2,27 Unit Price incl. VAT
25
Spring washer 12x6,4x0,5
006976
$0,08 Unit Price incl. VAT
26
Spring plate M6
254485
$0,34 Unit Price incl. VAT
27
Flanged plate
CM017413
$5,38 Unit Price incl. VAT
28
Nut
648349
$3,65 Unit Price incl. VAT
29
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
30
Knurled bushing
830056
$0,34 Unit Price incl. VAT
31
Elastic spring
231590
$0,25 Unit Price incl. VAT
32
Rear mudguard
1B001422
Not Available
33
Screw w/ flange M6x30
B016792
$0,25 Unit Price incl. VAT
34
Spring washer 6,4x11x0,5
006966
$0,08 Unit Price incl. VAT
35
Spring plate M6
254485
$0,34 Unit Price incl. VAT
36
Bush
1C001238
$4,82 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
