Parts Catalog

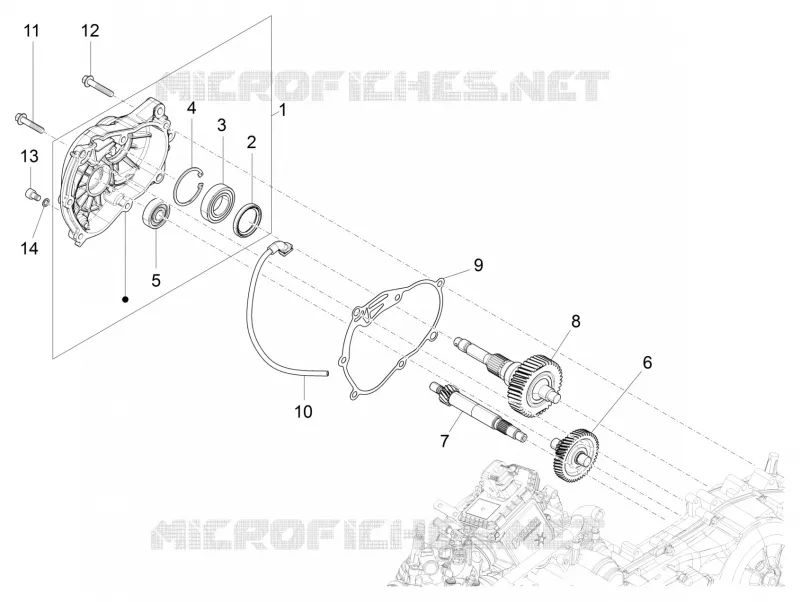

Reduction unit
6
Parts Diagram
Parts Catalog
by
Remote control switches - Battery - Horn
Reduction unit
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Side cover
8481875
$75,05 Unit Price incl. VAT
2
Gasket ring 38x50x7
83082R
$12,36 Unit Price incl. VAT
3
Radial bearing 30x55x13
83034R
Not Available
4
Circlip
829206
$0,67 Unit Price incl. VAT
5
Radial ball bearing 15x42x13
83018R
$4,46 Unit Price incl. VAT
6
Transmission shaft Z=21/50
8410015
Not Available
7
Driven pulley shaft Z=14
8738755
$71,52 Unit Price incl. VAT
8
Rear wheel axle
B0168895
Not Available
9
Gasket
847931
$6,48 Unit Price incl. VAT
10
Reduction unit breather pipe assembly
CM162202
$24,21 Unit Price incl. VAT
11
Screw w/ flange M8x40
B016806
$0,48 Unit Price incl. VAT
12
Screw w/ flange M8x45
B016805
$0,50 Unit Price incl. VAT
13
Hex socket screw M8x12
269755
$0,34 Unit Price incl. VAT
14
Washer 8.2x12x1
485703
$0,16 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
