1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog

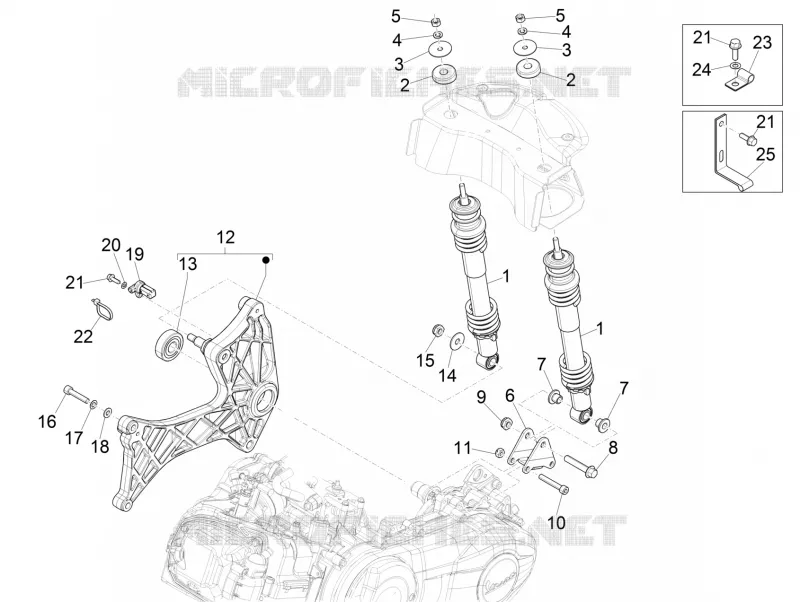

Rear suspension - Shock absorber/s
6
Parts Diagram
Parts Catalog
Engine, assembly
by
Front headlamps - Turn signal lamps
Rear suspension - Shock absorber/s
1
1
2
2
3
3
4
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
22
23
24
25
1
Complete rear shock absorber
58503R5
Not Available
2
Upper buffer
178150
$0,92 Unit Price incl. VAT
3
Flat washer
267038
$0,67 Unit Price incl. VAT
4
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
5
Nut M8
021108
$0,25 Unit Price incl. VAT
6
plate
598143
$5,38 Unit Price incl. VAT
7
Bush
597149
$3,65 Unit Price incl. VAT
8
Screw w/ flange M10
268158
$1,26 Unit Price incl. VAT
9
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
10
Hex socket screw M8x50
844483
$0,67 Unit Price incl. VAT
11
Nut M8
020008
$0,08 Unit Price incl. VAT
12
Right arm
1A001903
Not Available
13
Ball bearing
82545R
$12,11 Unit Price incl. VAT
14
Washer
013962
$2,95 Unit Price incl. VAT
15
Self locking nut M10
002440
$0,34 Unit Price incl. VAT
16
Hex socket screw M8x40
149104
$0,51 Unit Price incl. VAT
17
Spring washer
709047
$0,08 Unit Price incl. VAT
18
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
19
ABS rear sensor
B000526
$188,29 Unit Price incl. VAT
20
Flat washer
669282
$1,43 Unit Price incl. VAT
21
Torx convex big end screw M5x16
B0167965
$0,16 Unit Price incl. VAT
22
Lock-strap L=180mm
145298
$0,08 Unit Price incl. VAT
23
Hose clamp
643413
$3,65 Unit Price incl. VAT
24
Washer Ø5,3xØ10x0,5
006975
$0,17 Unit Price incl. VAT
25
Hose clamp
9004461229000
$4,62 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
