1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Front headlamps - Turn signal lamps
by
Rear headlamps - Turn signal lamps

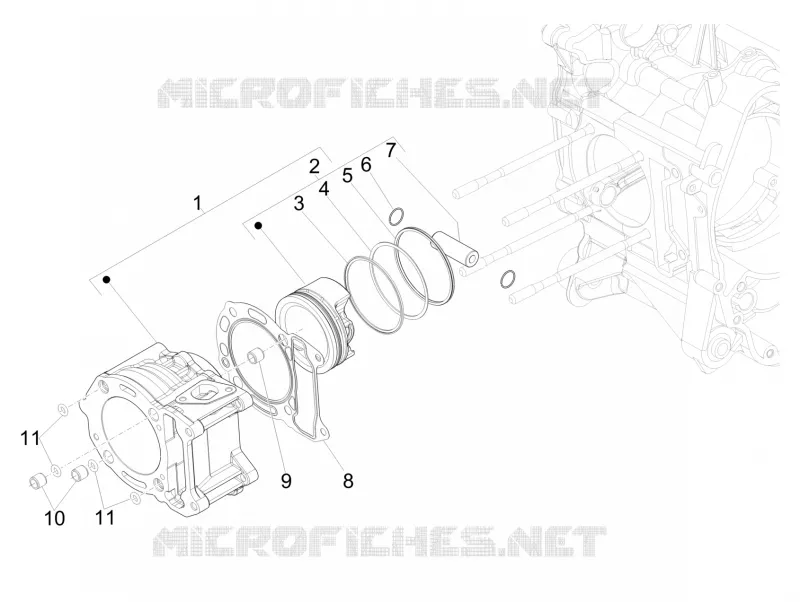

Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
11
11
1
Cyl.pist.-wrist pin assy unit
876457
$215,47 Unit Price incl. VAT
2
Piston + piston pin Cat.1
8764580001
$53,36 Unit Price incl. VAT
2
Piston + piston pin Cat.4
8764580004
$53,36 Unit Price incl. VAT
2
Piston + piston pin Cat.3
8764580003
$57,33 Unit Price incl. VAT
2
Piston + piston pin Cat.2
8764580002
$57,33 Unit Price incl. VAT
3
Compression ring Ø 75x1,5
B015159
$7,23 Unit Price incl. VAT
4
Oil scraper ring Ø 75x1,2
B015160
$7,23 Unit Price incl. VAT
5
Oil scraper ring Ø 75x2,5
B015161
$8,65 Unit Price incl. VAT
6
Snap ring
875096
$0,19 Unit Price incl. VAT
7
O-ring
B017342
$2,95 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
$4,88 Unit Price incl. VAT
9
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
10
Locating dowel
B015957
$0,59 Unit Price incl. VAT
11
O-ring
B017342
$2,95 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
