1
Engine displacement
300
2
Model
GTV
3
Year
2017
4
Trim
GTV 300 SEI GIORNI ie E4 ABS
5
Parts Catalog
Cylinder head cover
6
Parts Diagram
Parts Catalog
Crankcase cover - Crankcase cooling
by
Flywheel magneto cover - Oil filter

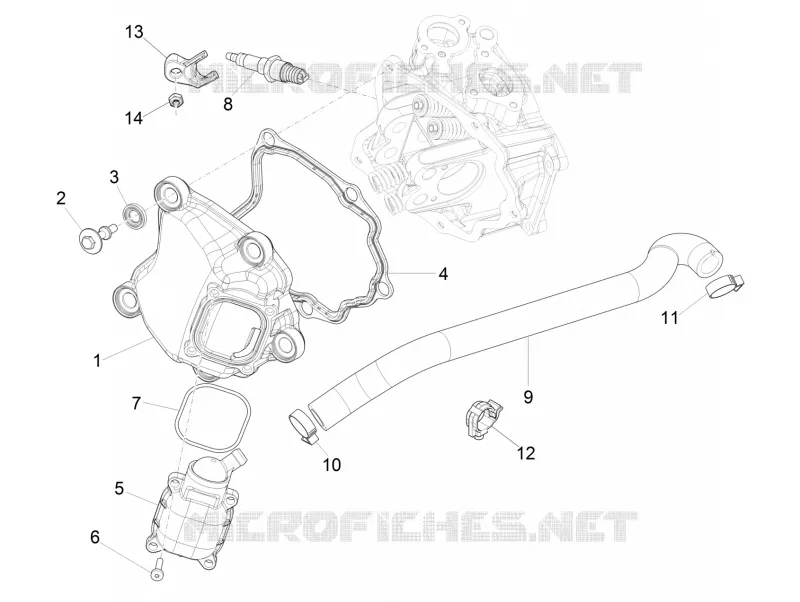

Cylinder head cover
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Head cover
829534
$47,84 Unit Price incl. VAT
2
Special screw
872635
$1,26 Unit Price incl. VAT
3
Damper drift
830249
$0,34 Unit Price incl. VAT
4
Head cover gasket
829536
$5,62 Unit Price incl. VAT
5
Oil breather valve
828421
$3,78 Unit Price incl. VAT
6
Self tapping screw M5x20
877136
$0,09 Unit Price incl. VAT
7
Gasket
1A003985
$1,60 Unit Price incl. VAT
8
Spark plug CR8EKB
639687
$14,54 Unit Price incl. VAT
9
Engine oil breather pipe
844094
$15,22 Unit Price incl. VAT
10
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
11
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
12
Non return spring L=23
CM006908
$0,50 Unit Price incl. VAT
13
Hood retainer
641521
$5,38 Unit Price incl. VAT
14
Nut
810511
$3,65 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
