1
Engine displacement
125
2
Model
PX
3
Year
0
4
Trim
PX 125 E
5
Parts Catalog
Crankcase fasteners
6

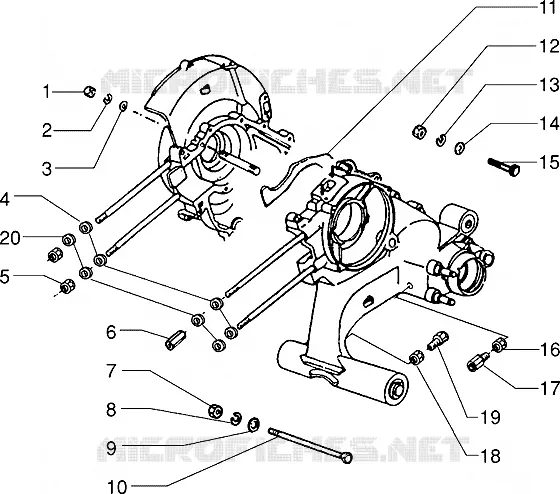

Parts Diagram
Parts Catalog
Front drum
by
Footboard
Crankcase fasteners
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
1
Nut
020107
$2,95 Unit Price incl. VAT
2
Washer
016407
$2,95 Unit Price incl. VAT
3
Flat washer
003057
$2,95 Unit Price incl. VAT
4
Washer
006977
$2,25 Unit Price incl. VAT
5
Nut
020007
$0,11 Unit Price incl. VAT
6
Nut
238969
$3,65 Unit Price incl. VAT
7
Nut
020107
$2,95 Unit Price incl. VAT
8
Washer
016407
$2,95 Unit Price incl. VAT
9
Flat washer
003057
$2,95 Unit Price incl. VAT
10
Bolt
014565
$5,20 Unit Price incl. VAT
11
Gasket
133157
$7,23 Unit Price incl. VAT
12
Nut
020107
$2,95 Unit Price incl. VAT
13
Washer
016407
$2,95 Unit Price incl. VAT
14
Flat washer
003057
$2,95 Unit Price incl. VAT
15
Bolt
012485
$3,65 Unit Price incl. VAT
16
Nut
020207
$0,08 Unit Price incl. VAT
17
Screw
023823
$8,01 Unit Price incl. VAT
18
Nut
020105
$0,25 Unit Price incl. VAT
19
Screw
156400
$8,01 Unit Price incl. VAT
20
Washer
006977
$2,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
