1
Engine displacement
125
2
Model
PX
3
Year
0
4
Trim
PX 125 E
5
Parts Catalog
Electronic ignition device
6

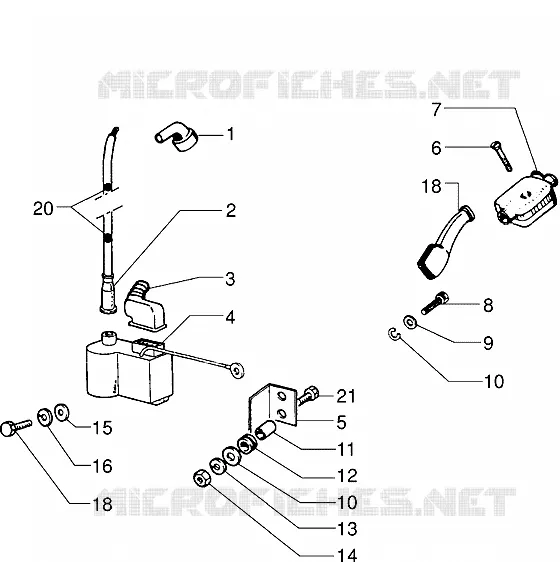

Parts Diagram
Parts Catalog
Crankcase
by
Rear brake jaws
Electronic ignition device
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
18
18
20
21
1
Spark plug cap
244395
$8,10 Unit Price incl. VAT
2
Insulating cap
231571
$1,11 Unit Price incl. VAT
3
Cap
255256
$3,39 Unit Price incl. VAT
4
Electronic ignition unit
2441285
Not Available
5
Bracket
179504
$6,30 Unit Price incl. VAT
6
screw
015881
Not Available
7
Bracket
179895
$4,32 Unit Price incl. VAT
8
TBIC screw
015597
$0,08 Unit Price incl. VAT
9
Plain washer 5,4x10x0,8
003055
$0,08 Unit Price incl. VAT
10
Washer
006018
$2,25 Unit Price incl. VAT
11
Bush
141589
$3,65 Unit Price incl. VAT
12
Pad
141590
$3,65 Unit Price incl. VAT
13
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
14
Nut
020005
$2,95 Unit Price incl. VAT
15
Flat washer
006125
$0,16 Unit Price incl. VAT
16
Spring washer 6,4x11,8x1
016406
$0,34 Unit Price incl. VAT
17
Screw m16x16
015558
$3,65 Unit Price incl. VAT
18
Guard
290715
Not Available
20
H.V. cable
080341
$5,89 Unit Price incl. VAT
21
Screw m5x22
015901
$2,25 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
