1
Engine displacement
125
2
Model
PX
3
Year
0
4
Trim
PX 125 E
5
Parts Catalog

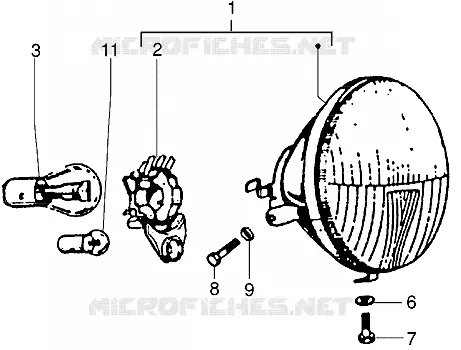

Optical unit
6
Parts Diagram
Parts Catalog
Clutch-throttle transmissions
by
Glove compartment
Optical unit
1
1
1
2
3
6
7
8
9
11
1
Headlight
163685
Not Available
1
Headlight
219236
Not Available
1
Headlamp
583542
$89,68 Unit Price incl. VAT
1
Headlamp
582946
Not Available
2
Lampholder
199370
$41,69 Unit Price incl. VAT
3
Lamp
102111
Not Available
6
Flat washer 4,2x12x1
013763
$0,08 Unit Price incl. VAT
7
screw
031027
$2,95 Unit Price incl. VAT
8
Self-tapping screw M5x12
015585
$0,08 Unit Price incl. VAT
9
Washer 5,3x10x0
012532
$0,67 Unit Price incl. VAT
11
Bulb 12V-5W
181747
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
