Parts Catalog
Saddle
6

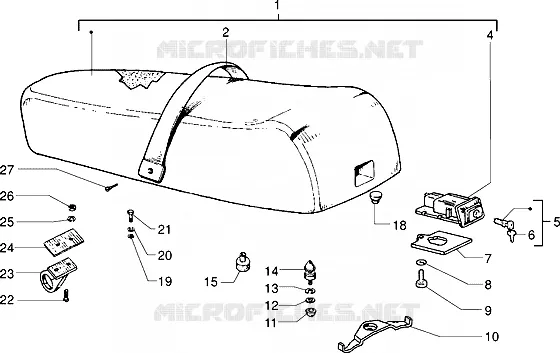

Parts Diagram
Parts Catalog
Steering column
by
Saddle
1
2
4
5
6
7
8
9
10
11
12
13
14
15
18
19
20
21
22
23
24
25
26
27
1
Saddle
CM001701
Not Available
1
Saddle
CM001702
Not Available
1
Saddle
CM010601000N
Not Available
1
Saddle
CM001704
Not Available
1
Saddle assembly
CM0106020061
Not Available
1
Saddle
CM001703
Not Available
1
Saddle
CM0106010054
Not Available
1
Saddle
CM0106020054
Not Available
2
Handle
219877
Not Available
2
Handle
219179
Not Available
4
Chromium-plated lock
577267
$30,62 Unit Price incl. VAT
5
Cylinder set
179292
Not Available
6
Key blank
257710
$4,82 Unit Price incl. VAT
7
plate
178898
$5,05 Unit Price incl. VAT
8
Flat washer 4,2x7,6x0,9
016404
$0,42 Unit Price incl. VAT
9
screw
031027
$2,95 Unit Price incl. VAT
10
Front hook
219857
$4,82 Unit Price incl. VAT
11
Cup
240166
$19,01 Unit Price incl. VAT
12
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
13
Notched washer 14x8,3x1,8
012540
$0,08 Unit Price incl. VAT
14
Pin
240165
$7,70 Unit Price incl. VAT
15
Pad
267420
$5,53 Unit Price incl. VAT
18
Pad
267420
$5,53 Unit Price incl. VAT
19
Flat washer 15x8,4x1,5
003058
$0,08 Unit Price incl. VAT
20
Spring washer 13,75x8,15x4,5
016408
$0,08 Unit Price incl. VAT
21
Hex screw M8x22
031119
$3,65 Unit Price incl. VAT
22
screw
010022
$2,95 Unit Price incl. VAT
23
Hook for bag
227153
$9,18 Unit Price incl. VAT
24
plate
057371
$22,46 Unit Price incl. VAT
25
Spring washer 8,5x5,1x1,5
016405
$0,08 Unit Price incl. VAT
26
Nut
020105
$0,25 Unit Price incl. VAT
27
screw
219417
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
