Stater - Electric starter for GILERA PIAGGIO VESPA NRG Power 50 H2O from 2018

Rear suspension - Shock absorber/s

Meter combination - Cruscotto

Stater - Electric starter

1

MOTORINO AVVIAMENTO

82530R

$113,40 Unit Price incl. VAT

2

VITE TE M6x20

018639

$0,16 Unit Price incl. VAT

3

GRUPPO CAVETTI MOTORINO AVVIAMENTO

642292

$34,32 Unit Price incl. VAT

4

FASCETTA A STRAPPO

145298

$0,08 Unit Price incl. VAT

5

VITE TESTA CILINDRICA CON INTAGL.CROCE

018644

$3,70 Unit Price incl. VAT

6

RONDELLA ELASTICA

016404

$0,42 Unit Price incl. VAT

7

Starter motor gear

286174

Not Available

8

PIGNONE M.MOTO CON BOC

483537

$8,63 Unit Price incl. VAT

9

Elastic spring

830212

$0,82 Unit Price incl. VAT

10

ASSE MESSA IN MOTO CON P.I.

831458

$14,39 Unit Price incl. VAT

11

MOLLA RICHIAMO LEVA AVVIAMENTO

289495

$15,81 Unit Price incl. VAT

12

ROSETTA PIANA 16,3x23,8x0,6

433987

$2,99 Unit Price incl. VAT

13

LEVA MESSA IN MOTO COMPL.

286214

$22,19 Unit Price incl. VAT

14

RONDELLA PIANA 10,1X2,5

286219

$8,12 Unit Price incl. VAT

15

ANELLO

288041

$3,70 Unit Price incl. VAT

16

PROTEZIONE

286217

$5,45 Unit Price incl. VAT

17

VITE ESAGONALE FLANGIATA M6X25 CL10,9

B016774

$0,34 Unit Price incl. VAT

18

ANELLO ELASTICO

006416

$0,08 Unit Price incl. VAT

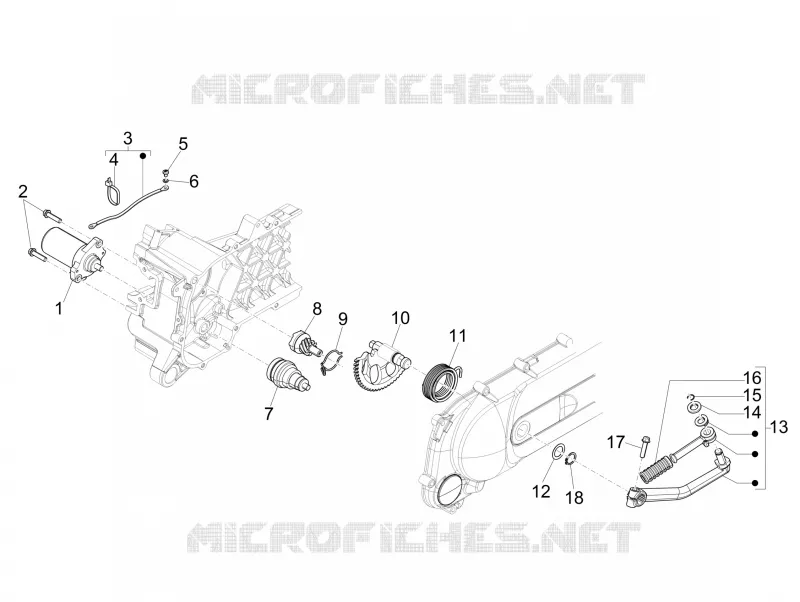

Find the detailed Stater - Electric starter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
