Parts Catalog
Rear headlamps - Turn signal lamps
6
Parts Diagram
Parts Catalog
Plates - Emblems
by
Central cover - Footrests
Rear headlamps - Turn signal lamps
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
1
Taillight
639402
Not Available
2
VITE AUTOFIL. TBCIC 3,8x16
270793
$0,08 Unit Price incl. VAT
3
NDICATOR.DI DIREZIONE ANT.SX - POST.DX
642603
$16,87 Unit Price incl. VAT
4
LAMPADA 12V-10W AMBRA
584332
$11,15 Unit Price incl. VAT
5
GR CAVETTI LAMPEGG.
582248
$3,39 Unit Price incl. VAT
6
INDICATOR.DI DIREZIONE ANT.DX - POST.SX
642602
$12,22 Unit Price incl. VAT
7
GR CAVETTI LAMPEGG.
582248
$3,39 Unit Price incl. VAT
8
LAMPADA 12V-10W AMBRA
584332
$11,15 Unit Price incl. VAT
9
VITE METRICA CON INT.A CROCE M6x16.
272836
$3,70 Unit Price incl. VAT
10
DADO ES.FLG.M6 DIN-6923
288245
$0,16 Unit Price incl. VAT
11
FANALINO ILL.TARGA
639088
$14,89 Unit Price incl. VAT
12
Lampada 12V-5W
2920225
$1,10 Unit Price incl. VAT
13
VITE AUTOFILETTANTE
267115
$2,99 Unit Price incl. VAT
14
RONDELLA 4,3X8X0,5
003054
$0,08 Unit Price incl. VAT
15
Plate light support
638923
Not Available
16
VITE AUTOF.CON TAGLIO A CROCE 3,5x13
297498
$0,08 Unit Price incl. VAT

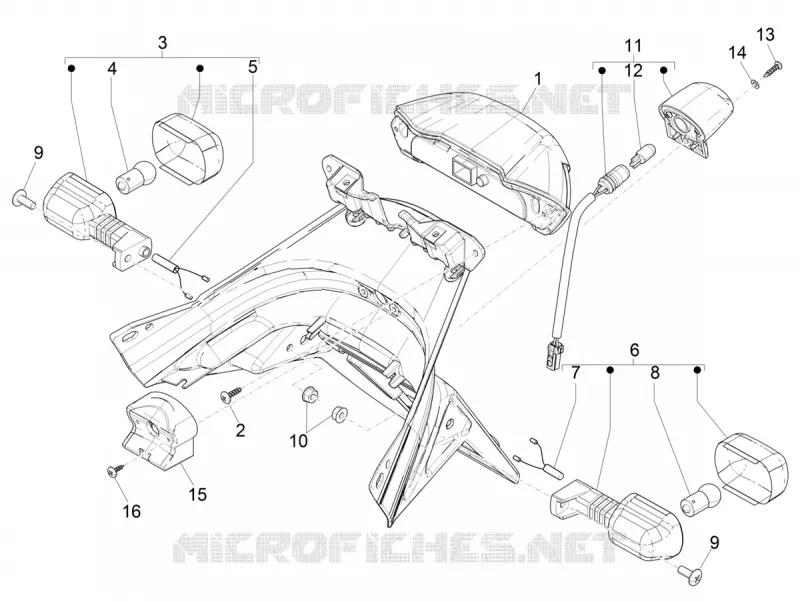

Find the detailed Rear headlamps - Turn signal lamps GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
