1
Engine displacement
50
2
Model
NRG
3
Year
2018
4
Trim
NRG Power 50 H2O
5
Parts Catalog
Rear cover - Splash guard
6
Parts Diagram
Parts Catalog
Air filter
by
Remote control switches - Battery - Horn
Rear cover - Splash guard
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
26
27
27
28
29
1
Fairing closure
95943900NI
Not Available
1
UNIONE CHIUSURA FIANCATE
959439
$4,66 Unit Price incl. VAT
1
Fairing closure
95943900BR
Not Available
2
VITE
258249
$0,09 Unit Price incl. VAT
3
PARATIA SOTTOCODA
959335000G
$8,10 Unit Price incl. VAT
4
VITE
258249
$0,09 Unit Price incl. VAT
5
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
6
VITE A TESTA CILINDRICA CON INT.A CROCE
015996
$0,08 Unit Price incl. VAT
7
RONDELLA PIANA 12x4,5x1
016670
$0,09 Unit Price incl. VAT
8
PORTATARGA
1B0053290000G
$13,36 Unit Price incl. VAT
9
VITE METRICA CON CODOLO
575249
$0,66 Unit Price incl. VAT
10
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
11
VITE
258249
$0,09 Unit Price incl. VAT
12
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
13
VITE A TESTA CILINDRICA CON INT.A CROCE
015996
$0,08 Unit Price incl. VAT
14
RONDELLA PIANA 12x4,5x1
016670
$0,09 Unit Price incl. VAT
15
PIASTRINA ELASTICA
959263
$0,67 Unit Price incl. VAT
16
PORTATARGA(PLASTICA)
638833
$1,65 Unit Price incl. VAT
16
PORTATARGA
642235
$7,23 Unit Price incl. VAT
17
VITE A TESTA CILINDRICA CON INT.A CROCE
015996
$0,08 Unit Price incl. VAT
18
RONDELLA PIANA METALLICA (12x4,2x1)
013763
$0,08 Unit Price incl. VAT
19
RONDELLA ELASTICA
016404
$0,42 Unit Price incl. VAT
20
DADO M4 - 6H
020104
$1,26 Unit Price incl. VAT
21
PARASPRUZZI COMPLETO
672045
$99,11 Unit Price incl. VAT
22
CATADIOTTRO POSTERIORE
58233R5
$2,60 Unit Price incl. VAT
23
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
24
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
25
VITE METRICA IMP. TORX(H=22)
CM179302
$0,55 Unit Price incl. VAT
26
PIASTRA SUPPORTO PARASPRUZZI CON P.I.
657504
$5,11 Unit Price incl. VAT
26
COPERT.MOTORE (CARBURAT.)
1B0053560000G
$8,22 Unit Price incl. VAT
27
VITE (M6X35)
414838
$0,67 Unit Price incl. VAT
27
VITE AUTOF. TCCIC D4,2x13 UNI 947
259349
$0,17 Unit Price incl. VAT
28
PIASTRINA ELASTICA
CM017410
$0,34 Unit Price incl. VAT
29
VITE
015835
$2,95 Unit Price incl. VAT

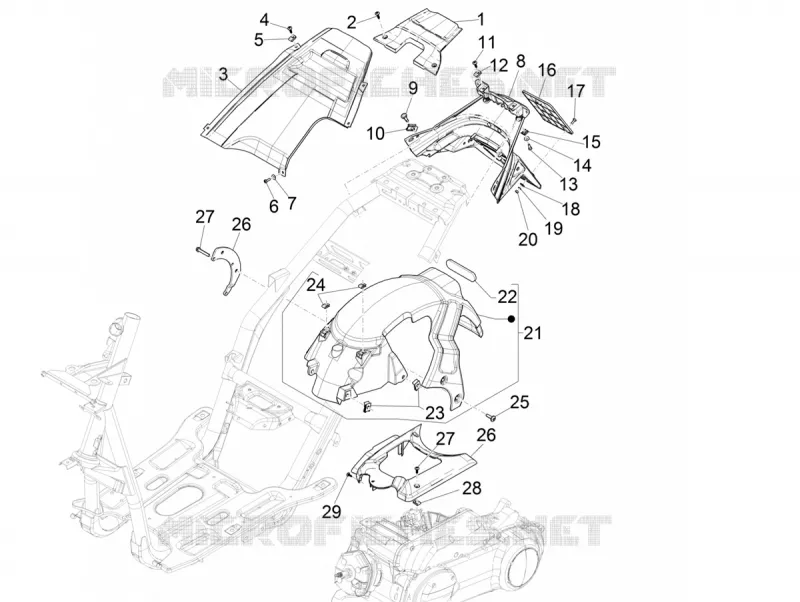

Find the detailed Rear cover - Splash guard GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
