1
Engine displacement
50
2
Model
NRG
3
Year
2018
4
Trim
NRG Power 50 H2O
5
Parts Catalog
Air filter
6
Parts Diagram
Parts Catalog
Front shield
by
Rear cover - Splash guard

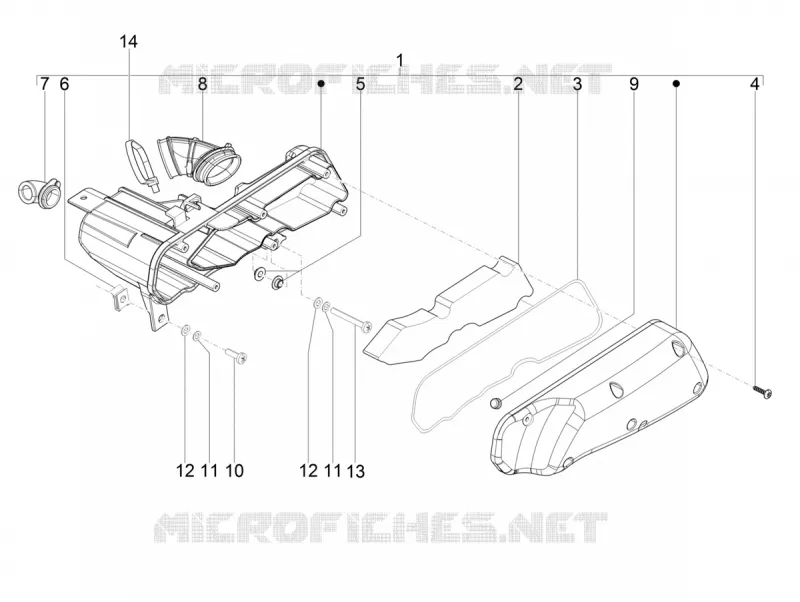

Air filter
14
13
12
12
11
11
10
9
8
7
6
5
4
3
2
1
1
Air box cpl.
1A011885
Not Available
2
Air filter
487719
Not Available
3
GUARNIZIONE
487718
$1,68 Unit Price incl. VAT
4
VITE AUTOFILETTANTE (3X20)
258146
$0,25 Unit Price incl. VAT
5
BOCCOLA ZIGRINATA
830056
$0,34 Unit Price incl. VAT
6
PIASTRINA ELASTICA M6
254485
$0,34 Unit Price incl. VAT
7
MANICOTTO
829715
$2,87 Unit Price incl. VAT
8
MANICOTTO DEPURAT./CAR
487592
$2,96 Unit Price incl. VAT
9
Cover
1A011931
Not Available
10
VITE. CIL. IMP. TORX M6X55
1B000678
$0,51 Unit Price incl. VAT
11
ROSETTA ELASTICA PIANA CON DENT.ESTERNA
012533
$0,67 Unit Price incl. VAT
12
RONDELLA PIANA 6,4x12x1
003056
$0,08 Unit Price incl. VAT
13
VITE TCCIC M6X20 IF CL
015759
$2,95 Unit Price incl. VAT
14
FASCETTA A STRAPPO
257134
$0,25 Unit Price incl. VAT

Find the detailed Air filter GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
