1
Engine displacement
50
2
Model
NRG
3
Year
2018
4
Trim
NRG Power 50 H2O
5
Parts Catalog
Oil pump
6
Parts Diagram
Parts Catalog
Stand/s
by
Front headlamps - Turn signal lamps
Oil pump
1
2
3
4
4
4
5
6
6
7
8
9
10
11
12
13
14
1
POMPA OLIO COMPLETA k1
82605R
$91,57 Unit Price incl. VAT
2
TUBO SERB-P**
CM101509
$13,47 Unit Price incl. VAT
3
TUBO OLIO**
CM101605
$10,35 Unit Price incl. VAT
4
RONDELLA ONDULATA (5,3X10X0,5)
006975
$0,17 Unit Price incl. VAT
5
VITE TCIC M5X12
015585
$0,08 Unit Price incl. VAT
6
VITE A TESTA CILINDRICA M5X21
015856
$0,16 Unit Price incl. VAT
7
PIASTRA SUPP.X
286163
$2,19 Unit Price incl. VAT
8
INGRANAG.COMP.MISCELAT
289262
$0,05 Unit Price incl. VAT
9
PULEGGIA DENTATA
286158
$1,35 Unit Price incl. VAT
10
CINGHIA DENTATA
286162
$4,38 Unit Price incl. VAT
11
PASSACAVO k7
287021
$2,08 Unit Price incl. VAT
12
VITE REGISTRO k5
146197
$0,81 Unit Price incl. VAT
13
DADO ESAGONALE M6 CL.6S
020106
$0,08 Unit Price incl. VAT
14
FASCETTA STRINGITUBO
486149
$0,09 Unit Price incl. VAT

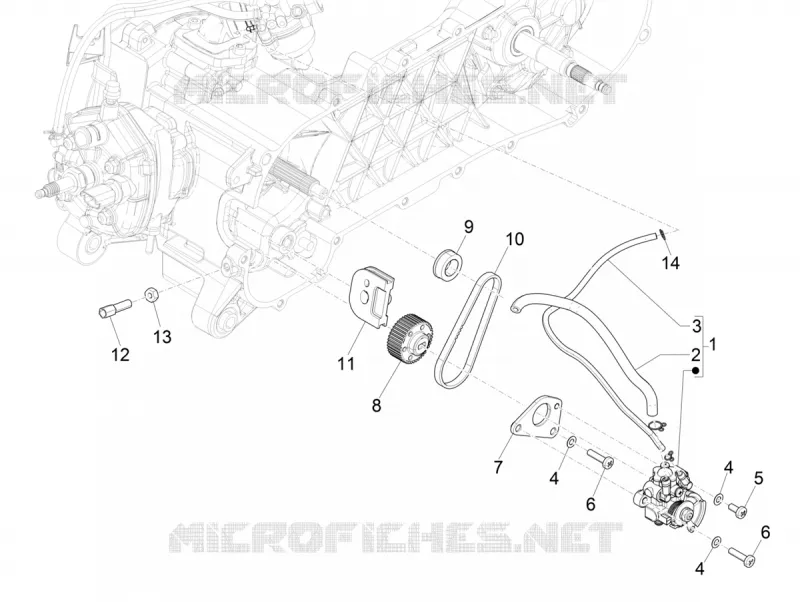

Find the detailed Oil pump GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
