1
Engine displacement
50
2
Model
NRG
3
Year
2018
4
Trim
NRG Power 50 H2O
5
Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Handlebars coverages
by
Front glove-box - Knee-guard panel
Driven pulley
1
2
3
4
5
6
7
8
8
9
9
10
11
12
13
14
15
16
1
PULEGGIA COND.COMPL.FR
CM100109
$257,85 Unit Price incl. VAT
2
BOCCOLO
4795526
$162,29 Unit Price incl. VAT
3
ANELLO
006624
$2,99 Unit Price incl. VAT
4
ASTUCCIO A RULLINI
289952
$5,97 Unit Price incl. VAT
5
CUSCINETTO A SFERE
82655R
$27,40 Unit Price incl. VAT
6
PERNO
482766
$3,70 Unit Price incl. VAT
7
SEMIPULEGGIA CONDOTTA MOBILE COMPL.
827893
$94,53 Unit Price incl. VAT
8
ANELLO TENUTA
289950
$9,17 Unit Price incl. VAT
9
GUARNIZIONE
289840
$1,26 Unit Price incl. VAT
10
SCODELLINO
483443
$3,70 Unit Price incl. VAT
11
MOLLA VARIATORE
478028
$17,60 Unit Price incl. VAT
12
SCODELLINO LATO FRIZIONE
487935
$20,91 Unit Price incl. VAT
13
FRIZIONE CENTR. CPL NR k1
CM1002045
$71,55 Unit Price incl. VAT
14
GHIERA
289955
$8,58 Unit Price incl. VAT
15
TAMBURO FRIZIONE CON P.I.
289933
$43,84 Unit Price incl. VAT
16
DADO FLANGIATO NORMALE M10X1,25
289519
$0,56 Unit Price incl. VAT

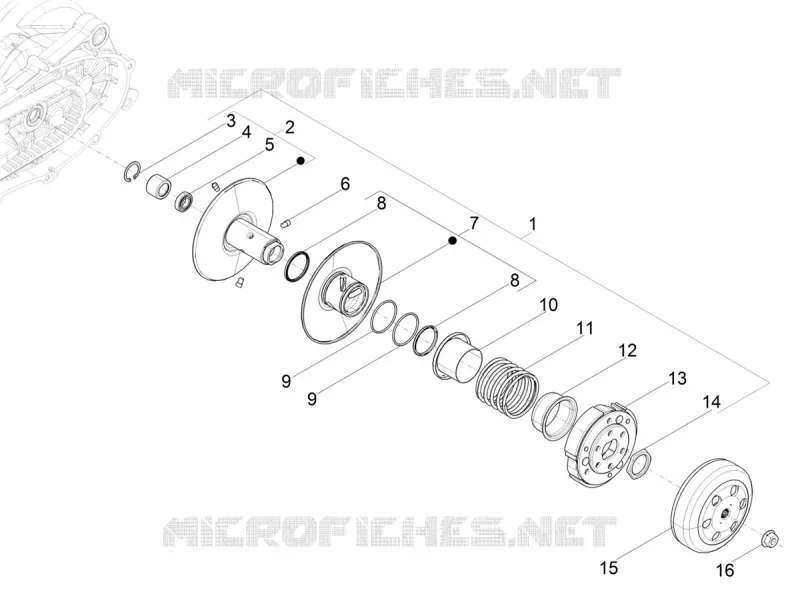

Find the detailed Driven pulley GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
