Engine displacement
125
2
Model
S
3
Year
2009
4
Trim
S 4T
5
Parts Catalog
Handlebars - Master cil.
6

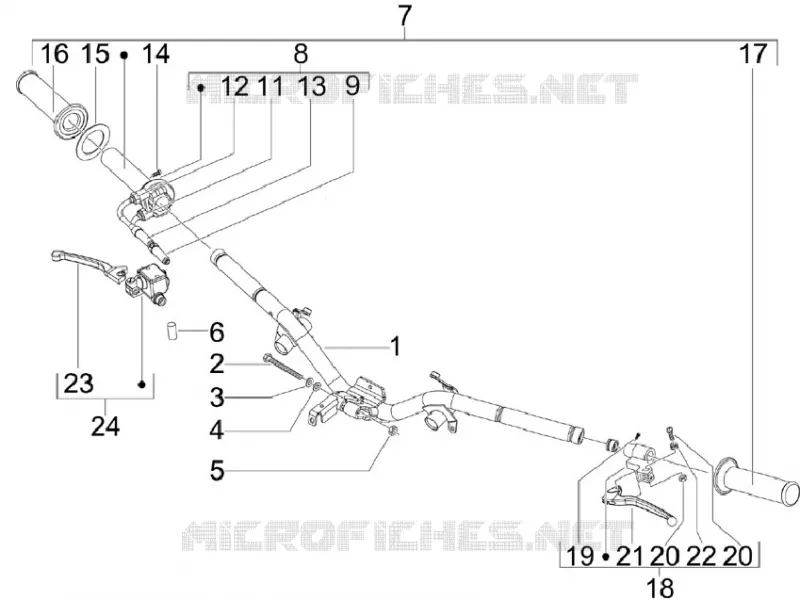

Parts Diagram
Parts Catalog
Rear suspension - Shock absorber/s
by
Rocking levers support unit
Handlebars - Master cil.
1
2
3
4
5
6
7
8
9
11
12
13
14
15
16
17
18
19
20
20
21
22
23
24
1
Handlebar with U.P.
657116
Not Available
2
Hex socket screw
655554
$3,70 Unit Price incl. VAT
3
Flat washer 18x10,2x2,5
267917
$0,50 Unit Price incl. VAT
4
Flat elastic washer with internal toothing 17x10,3x2
012543
$0,08 Unit Price incl. VAT
5
Nut M10
015330
$0,25 Unit Price incl. VAT
6
Cap
125998
$5,38 Unit Price incl. VAT
7
Throttle control sleeve assembly
666012
Not Available
8
Gas lever transmission
CM065917
Not Available
9
Throttle closing transmission
651010
$21,76 Unit Price incl. VAT
11
Nut
002613
$2,25 Unit Price incl. VAT
12
Nut
020105
$0,25 Unit Price incl. VAT
13
Throttle opening transmission
651009
$21,28 Unit Price incl. VAT
14
Screw with bushing
123394
$3,70 Unit Price incl. VAT
15
Ring 38,3x27x1,2
562923
$2,99 Unit Price incl. VAT
15
Ring
666129
$5,53 Unit Price incl. VAT
16
Grip, r.h.
666132
$4,95 Unit Price incl. VAT
16
RH hand grip
274491
$12,19 Unit Price incl. VAT
17
Grip, l.h.
274489
$13,41 Unit Price incl. VAT
17
Complete left hand grip
666130
Not Available
18
Left hand grip with rear brake lever
651034
$23,36 Unit Price incl. VAT
19
Screw with bushing
123394
$3,70 Unit Price incl. VAT
20
Screw with nut
265249
$3,70 Unit Price incl. VAT
21
Rear brake control lever
564683
$22,55 Unit Price incl. VAT
22
Spring
267948
$4,89 Unit Price incl. VAT
23
Brake lever
497042
$18,36 Unit Price incl. VAT
23
Fr. br. lever GRIMECA
646803
$90,45 Unit Price incl. VAT
23
Brake lever
646833
Not Available
24
Front master cilinder
CM074904
$125,55 Unit Price incl. VAT
