Engine displacement
125
2
Model
S
3
Year
2009
4
Trim
S 4T
5
Parts Catalog
Front shield
6
Parts Diagram
Parts Catalog
Cylinder head cover
by
Fuel tank
Front shield
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
1
Right-hand shield edge
622188
$24,03 Unit Price incl. VAT
2
Left-hand shield edge
622187
$24,03 Unit Price incl. VAT
3
Butt strap DX
299965
$7,69 Unit Price incl. VAT
4
Butt strap SX
299964
$7,69 Unit Price incl. VAT
5
Right lower bracket of the leg shield back plate fix
654913
$6,30 Unit Price incl. VAT
6
Left lower bracket of the leg shield back plate fix
654899
$6,30 Unit Price incl. VAT
7
Plug screw
268596
$0,08 Unit Price incl. VAT
7
Self tapping screw 3,5x13
258403
$2,95 Unit Price incl. VAT
8
Spring plate
CM017403
$0,50 Unit Price incl. VAT
9
Steering column cover
65488320AI
Not Available
9
Steering column cover
654883
$10,07 Unit Price incl. VAT
9
Steering column cover
65488350AI
Not Available
9
Steering column cover
65488300ND
Not Available
9
Steering column cover
65488300BR
Not Available
9
Steering column cover
65488300AI
Not Available
9
Steering column cover
65488350BR
Not Available
9
Steering column cover
65488300R7
Not Available
9
Steering column cover
65488350R7
$153,70 Unit Price incl. VAT
10
Rubber w/ insert M4
AP8144564
$4,49 Unit Price incl. VAT
11
screw
018544
$2,25 Unit Price incl. VAT
12
Expansion plug
157716
$0,08 Unit Price incl. VAT
12
Expansion plug
199190
$2,95 Unit Price incl. VAT
13
Self tapping screw L=20 mm
267958
$0,25 Unit Price incl. VAT
14
Self tapping screw
297498
$0,08 Unit Price incl. VAT
15
Front moulding
654272
$24,90 Unit Price incl. VAT

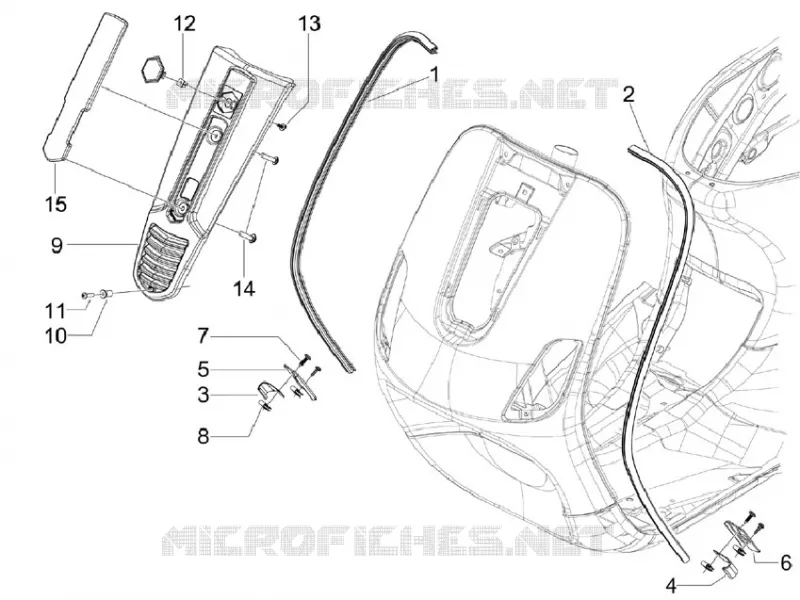

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
