Fuel tank for S 4T from 2009

Fuel tank

1

Tank

622834

$242,84 Unit Price incl. VAT

2

Hex screw M6x20

018639

$0,16 Unit Price incl. VAT

3

Spring washer 6,4x11,8x1

016406

$0,34 Unit Price incl. VAT

4

Flat washer 16x6,5x1,5

013880

$0,08 Unit Price incl. VAT

5

Plug

259832

$1,10 Unit Price incl. VAT

6

Tank cover gasket

258160

$1,00 Unit Price incl. VAT

7

Joint

296817

Not Available

8

Gasket

196868

$3,70 Unit Price incl. VAT

9

Level gauge

CM025702

$84,54 Unit Price incl. VAT

10

Spring plate M6

254485

$0,34 Unit Price incl. VAT

11

Complete vacuum pipe

624933

$17,83 Unit Price incl. VAT

12

Bleeding tank pipe

CM001206

Not Available

12

pipe

CM001209

Not Available

13

Hose clamp

577557

Not Available

14

Vacuum filter

624522

$16,73 Unit Price incl. VAT

15

pipe 3,25x8x420

CM027916

$17,03 Unit Price incl. VAT

16

pipe 3,25x8x70

CM027914

Not Available

17

Hose clamp

CM001912

$3,65 Unit Price incl. VAT

18

Hose clamp

CM002904

$0,42 Unit Price incl. VAT

19

Pipes/cables retainer spring

CM013202

$1,10 Unit Price incl. VAT

19

Hose clamp

CM002901

$0,09 Unit Price incl. VAT

20

Fuel pipe

CM006105

$13,53 Unit Price incl. VAT

20

Fuel pipe

CM006102

Not Available

20

Fuel pipe

CM006116

$10,76 Unit Price incl. VAT

20

pipe 4x9x350

CM006103

Not Available

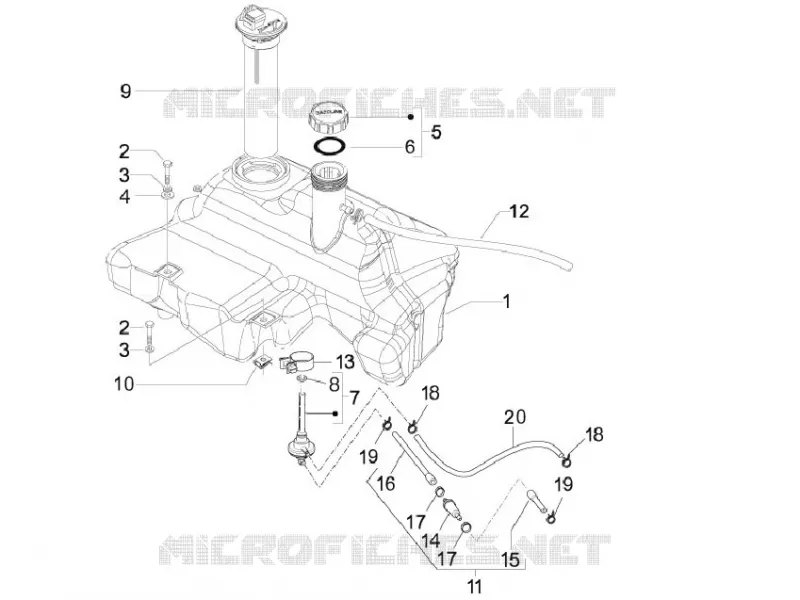

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
