Parts Catalog
Cylinder-piston-wrist pin unit
6
Parts Diagram
Parts Catalog
Flywheel magneto cover - Oil filter
by
Reduction unit
Cylinder-piston-wrist pin unit
1
2
3
4
5
6
7
8
9
10
1
Cylinder assembly-piston-pin (Cast-iron)
831975
$140,02 Unit Price incl. VAT
1
Cylinder assembly-piston-pin (Aluminium)
827113
Not Available
2
Complete piston (Cast-iron) Cat.D
8319740004
$46,99 Unit Price incl. VAT
2
Complete piston (Cast-iron) Cat.A
8319740001
$46,99 Unit Price incl. VAT
2
Complete piston (Cast-iron) Cat.C
8319740003
$49,94 Unit Price incl. VAT
2
Complete piston (Aluminium) Cat.D
8271120004
$51,88 Unit Price incl. VAT
2
Complete piston (Aluminium) Cat.B
8271120002
$48,37 Unit Price incl. VAT
2
Complete piston (Cast-iron) Cat.B
8319740002
$46,99 Unit Price incl. VAT
2
Complete piston (Aluminium) Cat.C
8271120003
$48,37 Unit Price incl. VAT
2
Complete piston (Aluminium) Cat.A
8271120001
$48,37 Unit Price incl. VAT
3
Compression ring d.57x1
485779
$23,03 Unit Price incl. VAT
4
Oil scraper ring d.57x2,5
485914
$21,88 Unit Price incl. VAT
5
Oil scraper ring d.57x1
486362
$26,68 Unit Price incl. VAT
6
Snap ring
963486
$0,05 Unit Price incl. VAT
7
Piston pin
482335
$4,92 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
875114
$4,62 Unit Price incl. VAT
8
Cylinder base gasket 0,6 mm
875113
$4,88 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
875112
$4,04 Unit Price incl. VAT
8
Cylinder base gasket 0,8 mm
828148
Not Available
8
Cylinder base gasket 0,6 mm
828147
$2,81 Unit Price incl. VAT
8
Cylinder base gasket 0,4 mm
828146
Not Available
9
Locating dowel Ø7,5x12
277916
$0,34 Unit Price incl. VAT
10
Locating dowel
435571
$0,50 Unit Price incl. VAT

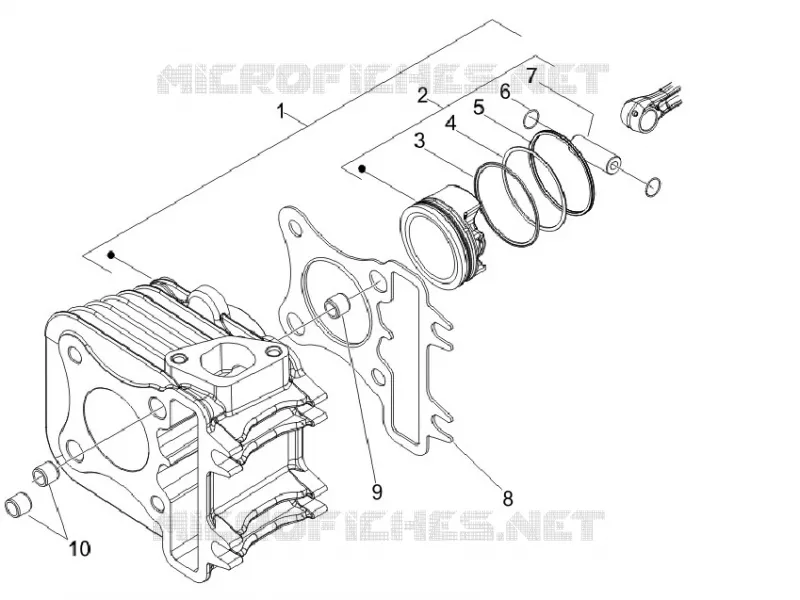

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
