Engine displacement
125
2
Model
S
3
Year
2009
4
Trim
S 4T
5
Parts Catalog
Driven pulley
6
Parts Diagram
Parts Catalog
Fuel tank
by
Stater - Electric starter
Driven pulley
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
1
Clutch driven pulley assy.
CM162401
$232,20 Unit Price incl. VAT
2
Complete centrifugal clutch assembly
CM161201
Not Available
2
Complete centrifugal clutch assembly
CM144002
Not Available
2
Complete centrifugal clutch assembly
CM1612015
$141,75 Unit Price incl. VAT
3
Ring nut
433232
$2,31 Unit Price incl. VAT
4
Clutch side cap
487936
$5,73 Unit Price incl. VAT
5
Variator spring
825726
$5,64 Unit Price incl. VAT
5
Variator spring
872877
$12,02 Unit Price incl. VAT
5
Variator spring
434673
Not Available
6
Cup
431093
Not Available
6
Pulley side cap
4310935
$9,79 Unit Price incl. VAT
7
Sec.sliding sheave
827595
Not Available
7
Adjustable pulley, half
879002
$63,56 Unit Price incl. VAT
8
Gasket ring
431089
$2,55 Unit Price incl. VAT
8
Gasket ring
006410
$2,74 Unit Price incl. VAT
9
Gasket
430585
$4,89 Unit Price incl. VAT
10
Guide pin L=12,5
828717
$0,34 Unit Price incl. VAT
11
Fixed driven half pulley
830580
$69,28 Unit Price incl. VAT
11
Fixed driven half pulley
483225
Not Available
12
Roller cage 20x29x18
82518R
$12,62 Unit Price incl. VAT
13
Snap ring
483226
$0,72 Unit Price incl. VAT
14
Radial bearing 17x30
483261
Not Available
14
Bearing 17x30x7
82753R
$19,17 Unit Price incl. VAT
15
Clutch drum
82751R
Not Available
15
Clutch drum
8440494
$26,86 Unit Price incl. VAT
15
Clutch drum
844049
Not Available
16
Flat washer 22x12,1x1
274246
$0,34 Unit Price incl. VAT
17
Nut M12x1.25
486324
$0,50 Unit Price incl. VAT

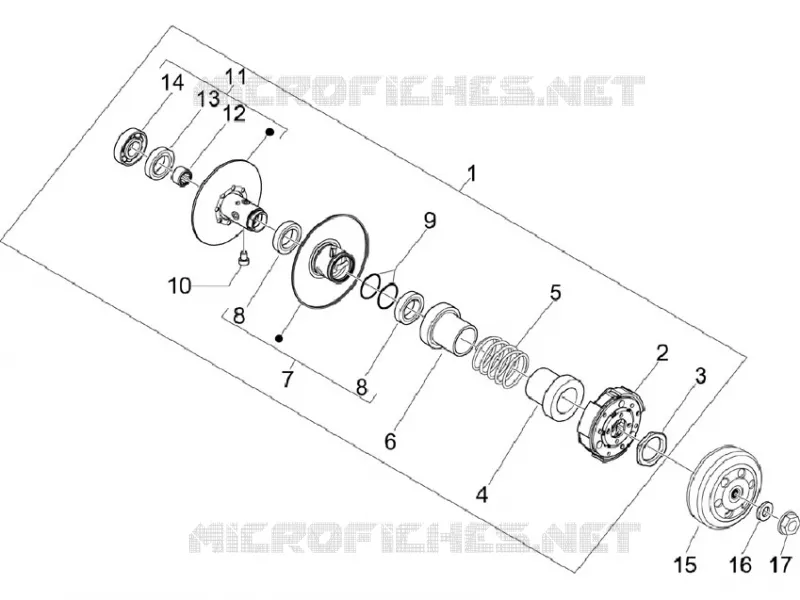

Find the detailed :label GILERA PIAGGIO VESPA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original GILERA PIAGGIO VESPA part number.
