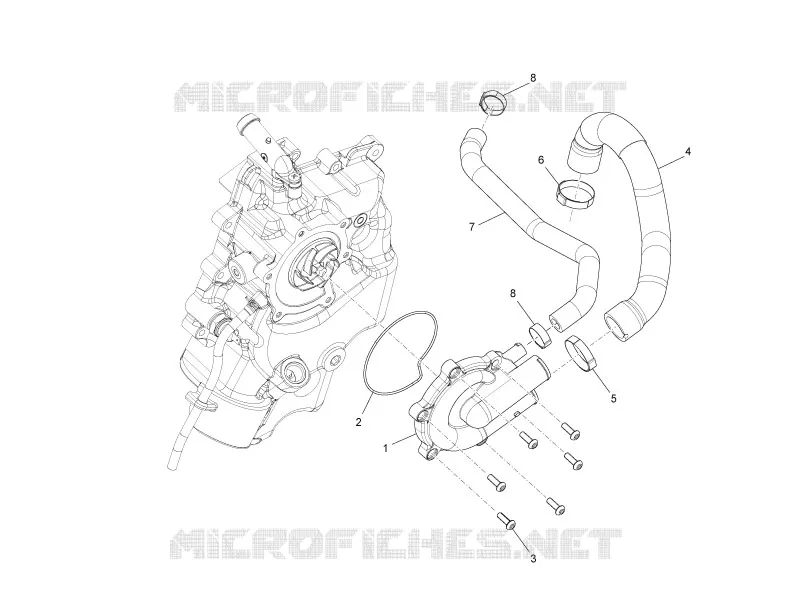

Cooler pump
1
2
3
4
5
6
7
8
8
1
Water pump cover
875315
Not Available
2
Water pump cover gasket
879210
$4,82 Unit Price incl. VAT
2
O-ring
827884
$4,82 Unit Price incl. VAT
3
screw
842041
$0,08 Unit Price incl. VAT
3
Torx convex big end screw
875173
$0,09 Unit Price incl. VAT
4
Pump-cylinder hose
B014663
Not Available
4
Pump-cylinder hose
873104
Not Available
5
Hose clamp
CM001917
$3,65 Unit Price incl. VAT
6
Hose clamp
CM001908
$3,65 Unit Price incl. VAT
7
Pump-thermostat "by pass" pipe
841102
$6,30 Unit Price incl. VAT
8
Hose clamp
CM001904
$0,75 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
